Heyco® North American Receptacle Outlets
"QD" Tabs or Solid Wire

Heyco® North American Receptacle Outlets

• Snap-in NEMA 5-15R receptacle.
• Three wire grounding. For 12 and 14 AWG rated at 15 Amps/125 Volts. For 16 AWG rated at 13 Amps/125 Volts.
• Receptacle installs on power supplies, computers, test equipment or wherever an accessory is desired or needed.

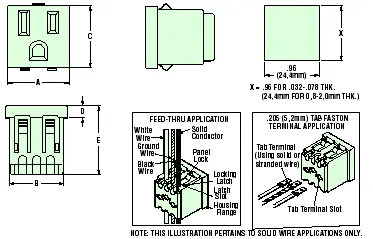

• Unique design allows for either solid or stranded wire termination (see diagram).
• Molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.

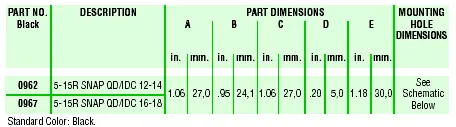

• Use #0962 for #12 AWG thru #14 AWG.
• Use #0967 for #16 AWG thru #18 AWG.
• UL and CSA Approved.
