Heyco® IEC 320-C13 Snap-In Power Outlet Nylon Fastener

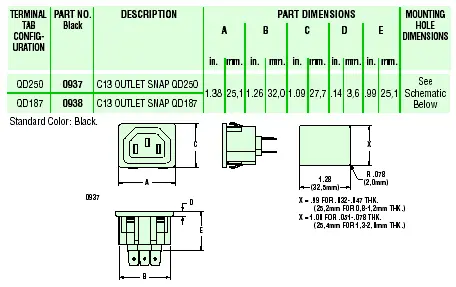

Heyco® IEC 320-C13 Snap-In Power Outlet Connectors
Heyco® IEC 320-C13 Snap-In Power Outlet Connectors
• Snap-in IEC power outlet suitable for chassis from .032" (0,8mm) to .125" (3,2mm) thick.
• N ylon fastener allows for standardization of equipment for use throughout the world.
• Nickel-plated brass contacts; horizontal terminals are 2 piece riveted contacts.
• All nylon fastener sizes rated at 15 Amps/250 volts (10 Amps in Europe).
• Molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.
• UL and CSA Approved.
