Heyco® IEC 320-C14 Snap-In Inlet Nylon Fastener w/Fuseholder


Heyco® IEC 320-C14 Snap-In Inlet Connector w/Fuseholder

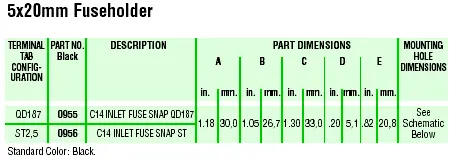

M2-7A.37

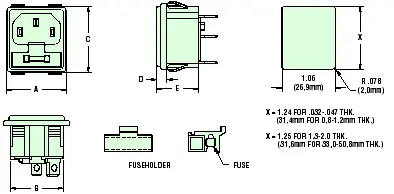

Heyco® IEC 320-C14 Snap-In Inlet Connector w/Fuseholder

• Snap-in power inlet nylon fastener connector with fuseholder allows you to attach either a North American or International cordset to your equipment.
• Suitable for chassis from .032" (0.8mm) to .125" (3,2 mm) thick.
• Nylon Fastener allows for standardization of equipment for use throughout the world.
• All nylon sizes rated at 10 Amps/250 Volts.
• Nickel-plated brass contacts.
• Molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.
• UL and CSA Approved.
