IEC Connectors/Components: Power Inlets

Heyco® PCB Mounting Power Inlet Nylon Fastener

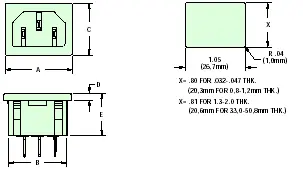

Heyco® PCB Mounting Power Inlet Connector

Heyco® PCB Mounting Power Inlet Connector

  • Snap-in IEC 320 power inlets are suitable for chassis from .032" (0.8mm) to .079" (2,0mm) thick.
  • Nylon fastener allows for standardization of equipment for use throughout the world since it separates the cordset from the application.
  • Power inlet has Nickel-plated brass contacts.
  • All nylon fastener sizes rated at 15 Amps/250 Volts (10 Amps in Europe).
  • Nylon fasteners are molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.
  • Heyco power inlets are UL and CSA Approved.
