Receptacle Outlets
Receptacle Outlets

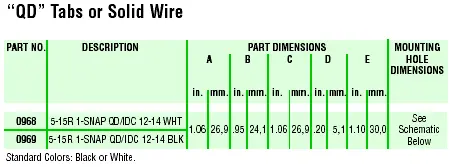

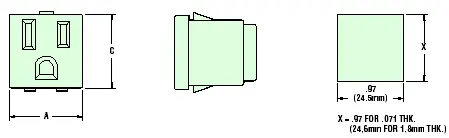

  • Snap-in NEMA 5-15R receptacle outlet.
  • Three-wire grounding. For 12 and 14 AWG rated at 15 Amps/125 Volts. For 16 AWG rated at 13 Amps/125 Volts.
  • Receptacle outlet installs on power supplies, computers, test equipment or wherever an accessory is desired or needed.

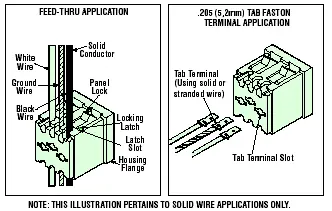

  • Unique design allows for either solid or stranded wire termination
  • Molded of type 6/6 "Nylon". Flammability classification 94V-0; temperatire index 65 degrees C
  • UL File #E132943
