IEC Connectors & Components: Power Outlets

Heyco IEC 320-C13 Power Outlet Nylon Fastener

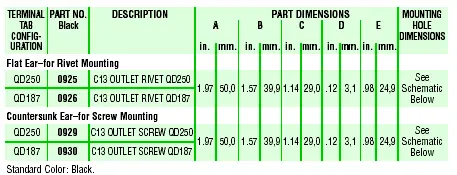

Heyco IEC 320-C13 Power Outlet Connectors

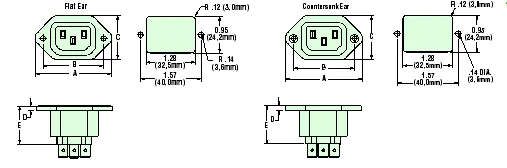

Heyco IEC 320-C13 Power Outlet Connectors
Heyco IEC 320-C13 Power Outlet Connectors
  • These 'reverse' IEC 320 power Outlet nylon fastener are used for accessory power connections.
  • Unique ear nylon fastener design allows for either rivet or screw mounting.
  • All power outlet nylon fastener sizes rated at 10 Amps/250 Volts.
  • Nickel-plated brass contacts.
  • Power outlet nylon fasteners are molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.
  • UL and CSA Approved.
