Heyco® IEC 320-C8 Low Current Power Inlet Nylon Fastener
Heyco® IEC 320-C8 Low Current Power Inlet ConnectorHeyco® IEC 320-C8 Low Current Power Inlet Connector

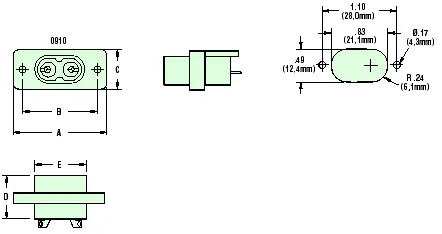

Heyco® IEC 320-C8 Low Current Power Inlet Connector

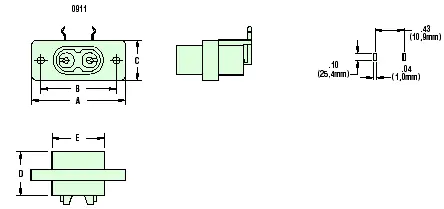

Heyco® IEC 320-C8 Low Current Power Inlet Connector
  • Low current power inlet nylon fastener is available in both snap-in and screw mount versions.
  • Snap-in version fits 0,8mm thru 1,3mm panel thickness.
  • Available with solder tabs or PCB mount.
  • Rated at 2.5 Amps/250 Volts.
  • UL and CSA Approved
