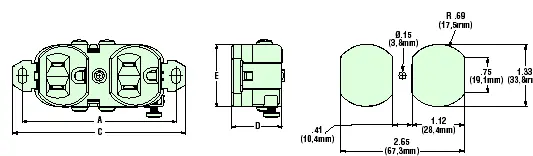

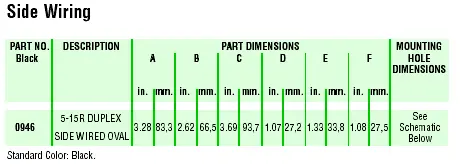

Duplex Outlet-Side Wiring

Duplex Outlet-Side Wiring
Duplex Outlet-Side Wiring
Duplex Outlet-Side Wiring
Duplex Outlet-Side Wiring

• NEMA 5-15 R duplex outlets are rated at 15 Amps/125 Volts.
• Side or back wiring versions allow ease of installation.
• Nickel-plated brass terminal tabs and contacts.
• For tab connector data see page 2-15.
• UL and CSA Approved.
