Twist-Lock Wire Connectors: Nylon Fastener Components

Heyco Products
Cordset Components and Precision Metal Stampings
Pre-Assembled Cordset Components | Pre-Assembled Cordset Components Applicator Equipment | Strain Relief Bushings | Strain Relief Pre-Assembly Equipment | Male Blades | Cordset Male Blades | Blade Ground Blade | International Blades | PC Board Blades/Male/Female Combination Terminals | Heavy Duty Terminals | Twist Lock Cordset Components | Ground Pins | Male Pins/Specialty Pins/Grade Terminals | Female Cord Connectors | Cordset Female Cord Connectors | Multi-Connectors | Heater Plug Connectors/Ring/Spade Terminals | Quick-Connect Terminals | Application Equipment

Heyco®Twist-Lock Cordset nylon fastener components

Cord set nylon fastener components are available in 15 Amp and 20 amp, female and male nylon fasteners with wire ranges of 10-16 AWG. Male nylon fasteners have options of brass or tin.
  • Twist-Lock Wire Connectors snap together nylon premold female housing eliminates the need for expensive cammed molds.
  • Easy loading for increased molding efficiency.
  • Uses inexpensive Heyco load pins (consult Heyco for details on our complete line of blades and pins).
  • Reduces PVC usage and allows more cavities per mold.

15 AMP

Swipe
Male Female
Part Numbers Description Wire Range Part Numbers Description Wire Range
6110 TL-L5-15-W & B, Brass

10-16 AWG

*7550 TLR-L5-15 10-16 AWG
6111 TL-L5-15-W & B, Tin *7756 2 Piece Pre-Mold N/A
6112 TL-L5-15-G, Brass
6113 TL-L5-15-G, Tin
*Patented

Heyco®Twist-Lock Cordset Components Heyco®Twist-Lock Cordset Components
Heyco®Twist-Lock Cordset Components
20 AMP

Swipe
Male Female
Part Numbers Description Wire Range Part Numbers Description Wire Range
6114 TL-L5-20-W, Brass

10-16 AWG

*7552 TLR-L5-20 10-16 AWG

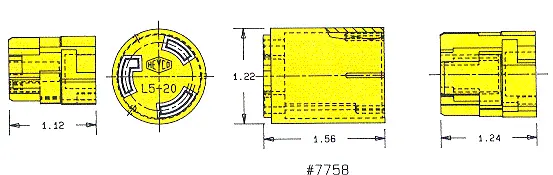

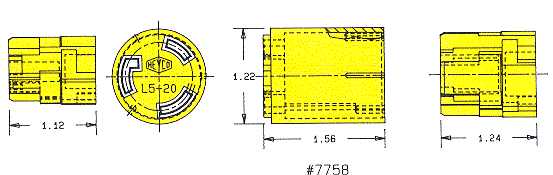

6115 TL-L5-20-W, Tin *7758 2 Piece Pre-Mold

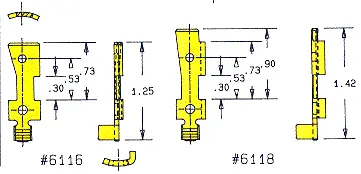

6116 TL-L5-20-B, Brass
6117 TL-L5-20-B, Tin
6118 TL-L5-20-G, Brass
6119 TL-L5-20-G, Tin
*Patented

Heyco®Twist-Lock Cordset Components Heyco®Twist-Lock Cordset Components
Heyco®Twist-Lock Cordset Components
Heyco®Twist-Lock Cordset Components
Heyco®Twist-Lock Cordset Components
