Heyco® NEMA 5-15P Pre-Assembled Cordset Components

Male & Female Bridge Receptables Available

Heyco®NEMA 5-15P Pre-Assembled Cordset Components

U.S.PATENT No. 6,190,212
  • Crimp all 3 terminals at once.
  • Faster loading of plug molds.
  • Reduces plug molding cycle time.
  • Passes elevated temperature pullout test with low cost PVC.
  • Reduces plug cost!
  • Improves plug quality.
PART NUMBER DESCRIPTION WIRE RANGE

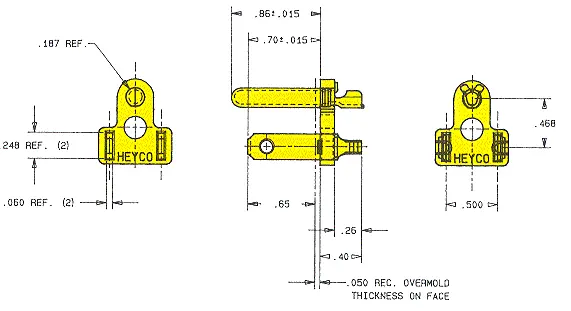

S7560 5-15P Male Bridge Black

18-14 AWG

S7562 *5-15P Male Bridge 7 Shape Black
*"7" Shape blades feature retention ledge to maintain position during plug molding.

Heyco®NEMA 5-15P Pre-Assembled Cordset Components

Heyco®NEMA 5-15R Pre-Assembled Cordset Components
Heyco®NEMA 5-15R Pres-Assembled Cordset Components
  • PATENTED

  • Crimp all 3 terminals at once.
  • Faster loading of plug molds.
  • Reduces plug molding cycle time.
  • Passes UL/CSA Cold Temperature Insertion test.
  • Improves plug quality.
  • Elminates need for polarity barrier.
  • Reduces PVC usage.
  • Reduces plug cost!
PART NUMBER DESCRIPTION WIRE RANGE

S7570

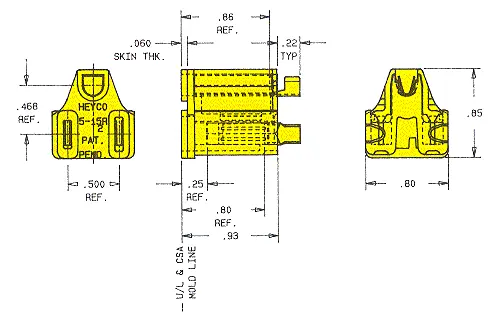

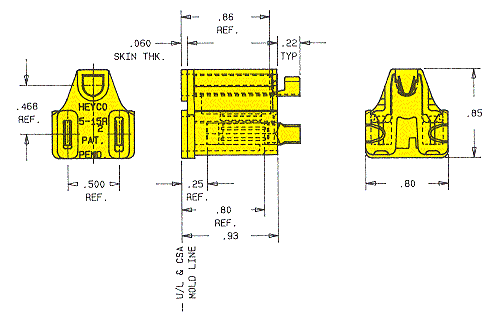

5-15R Female Bridge Receptacle 18-12 AWG

Female Bridge Receptacle
