Heyco® PC Board Blades

PC board blades are made of brass and have options of either solder or snap thru.

Typically used in 3 to 2 wire grounding adapters and piggyback current taps. 7-Shape blades feature retention ledge to maintain position during plug molding.

Part Numbers Type Material Feeds Wire Range
Non-Polarized Polarized
*5200 *5201 Snap-Thru Brass Bulk N/A
5031 5031 Solder
8168 -
8360 -
*Patented

Heyco® PC Board Blades Heyco® PC Board Blades

Heyco® Male/Female Combination Terminals
Part Numbers Type Material Mold Line Thickness Overall Length
6305 Non-Polarized Flat Blade Brass .058 1.59
6320 Non-Polarized Padded Blade .043
6321 Polarized Padded Blade
6322
6363 Non-Polarized 7-Shape Blade .058 1.95
6364 Polarized 7-Shape Blade
7245 Ground Pin 1.88
7247 2.13
Typical use in 3 to 2 wire grounding adapters and piggyback current taps.  7-Shape blades feature retention ledge to maintain position during plug molding.

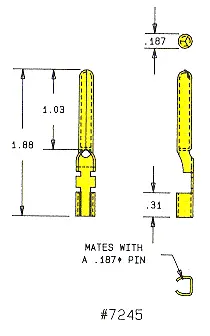

Heyco®Male/Female Combination Terminals Heyco®Male/Female Combination Terminals
Heyco®Male/Female Combination Terminals Heyco®Male/Female Combination Terminals Heyco®Male/Female Combination Terminals
