Home » Cap Type Plastic Fasteners

plastic fasteners







Cap Type Plastic Fasteners

The dimensions of these cap type plastic fasteners listed are envelope dimensions only. For complete plastic fastener design information, please contac ust.

Plastic Cap Nut fasteners combine the good looks and durability of high density linear polyethylene with the reliability of high carbon spring steel. Cap type plastic fasteners can be installed over shaft, stud or rod ends for a multitude of uses. These fasteners will enhance any product by adding color while providing dependable, vibration resistant assembly. Available in eight attractive standard colors, these fasteners may also be color matched in quantity orders. Wherever decorator colors are needed, colorful Tinnerman Plastic Cap fasteners can add substantially to a product sales appeal.

How to apply Cap Type Push-On Plastic Fasteners

Simply zipped down the fastener's axle, shaft or stud, the Tinnerman spring steel insert bites hard for positive retention. Properly applied, the cap type plastic fastener will never loosen and fall off.



Metric fasteners listed in italic

plastic fasteners

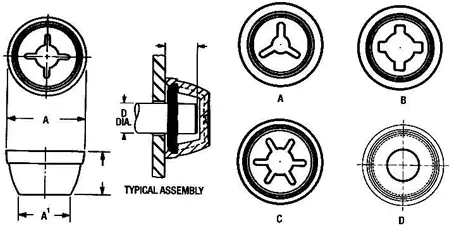

  Part Number D Stud Dia. Design Variation A Dia. A1 Dia. E Height L Stud Depth
  C60002-125 .125 A .650 .370 .350 .125-.250
  C60002-156 .156 Std. .650 .370 .350 .125-.250
  C60002-187 .187 Std. .650 .370 .350 .125-.235
  C60002-218 .218 Std. .650 .370 .350 .125-.170
  C60008-218 .218 Std. .835 .550 .460 .200-.343
  C60202-250 .250 A .650 .370 .350 .125-.150
  C60002-250 .250 B .650 .370 .350 .125-.150
  C62349-250 .250 D .650 .370 .350 .125-150
  C62301-250** .250 D .650 .370 .350 .125-150
  C60008-250 .250 Std. .835 .550 .460 .200-.343
  C60929-250 .250 C 1.250 .830 .650 .250-.468
  C60008-281 .281 B .650 .370 .350 .125-130
  C61297-296 .296 Std. .835 .550 .460 .200-.343
  C60008-312 .312 Std. .835 .550 .460 .200-.343
  C60008-354 .354 Std. .835 .550 .460 .200-.343
  C60008-375 .375 Std. .835 .550 .460 .200-.343
  C60929-375 .375 C 1.250 .830 .650 .250-.468
  C60008-1000M*** 10.00 Std. 21.209 13.970 11.684 5.080-8.712
  C60008-437 .437 C .835 .550 .460 .200-.343
  C60929-437 .437 C 1.250 .830 .650 .250-.468
  C61727-500 .500 C .895 .610 .460 .200-.343
  C60929-500 .500 C 1.250 .830 .650 .250-.468
  C60929-625 .625 C 1.250 .830 .650 .250-.468

**C62301-250 has stainless steel insert
***Metric stud. Other metric sizes available as special order
Available Colors
Plastic Cap Fasteners are available in eight standard colors:
  • Natural -801
  • Black -805
  • White -802
  • Silver -806
  • Red -803
  • Yellow -807
  • Blue -804
  • Green -808
When ordering add the dash number, shown next to color, to the part number. Example: C60002-125-801 (Natural)
