Heyco® Screwless Junction Box Connectors

Heyco Products
  Wire Termination
Quick Connects--Insulation Support Terminals | Quick Connects--Flag Insulation Support Terminals | Ring and Spade Terminals | Standard Appliance Terminal Blocks | Wire Protector Terminal Blocks | Barrier Terminal Blocks | Screw to 3-Tab Terminal Blocks | Screw to 2-Tab Terminal Blocks | OEM All-Plastic Wire Connectors | OEM High Temp Wire Connectors | Crimp-On Wire Connectors | Screwless Junction Box Connectors | Color Coded Wire Connectors | Wire Connector Accessories | Aluminum Solderless Connectors | Copper Lug Connectors | Wire Connector Labkit & Empty Labkit Boxes

Heyco® Screwless Junction Box Connectors
Heyco® Screwless Junction Box Connectors
Underwriters’ Laboratories Recognized under the Component Program of Underwriters’ Laboratories File #E-80121.
Canadian Standards Association Certified by Canadian Standards Association File #LR-88539.

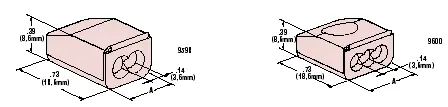

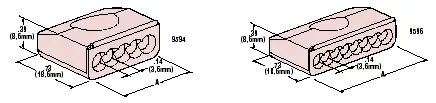

Maximum
Wire Size
UL 		MM2 Use Crimp
Tool		 Part No. A
Length
Gray Clear mm
16 AWG 1.5 SJBC 1620-5 9590 9591 17,5
16 AWG 1.5 SJBC 1620-8 9592 9593 26,4
14 AWG 2.5 SJBC 1418-5 9594 9595 22,0
14 AWG 2.5 SJBC 1418-8 9596 9597 32,3
14 AWG 2.5 SJBC 1418-2 9598 9599 10,7
14 AWG 2.5 SJBC 1418-3 9600 9601 14,3

Heyco® Screwless Junction Box Connectors
Heyco® Screwless Junction Box Connectors
Heyco® Screwless Junction Box Connectors
Heyco® Screwless Junction Box Connectors

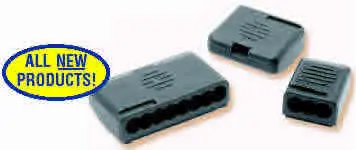

  • Heyco’s new Screwless Junction Box Connectors are sized to fit popular wire ranges–16-20 ga. as well as 14-18 ga. These sizes are available in popular 2, 3, 5 and 8 pole versions.
  • These UL and CSA approved connectors provide a secure and safe connection and permit the use of different gauge wires together. Once installed, wires are gripped firmly using a spring retention feature.

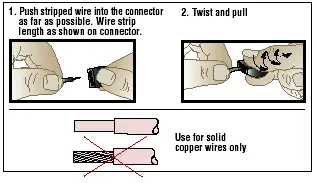

  • This snug connection is vibration-proof and eliminates any loose wires and unsafe connections that can occur during shipping and handling. You simply push the solid CU wire into place and the connection is made, quickly and easily. This simple motion reduces the risk of repetitive motion injuries.
  • These connectors can be used anywhere a wire nut-type connector is used. Their unique design allows for more efficient product assembly flow since, unlike wire nut-type connectors, there is no need for all wires to be in place before individual wires are assembled into the connector.
  • Molded of nylon, these connectors are available in either transparent or gray color, have a temperature index of 105°C and are rated to 600 Volts.
