Heyco® Right Angle Strain Relief Bushings
Heyco® Right Angle Strain Relief Bushings Component Program of Underwriters Recognized under the Component Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919

Swipe

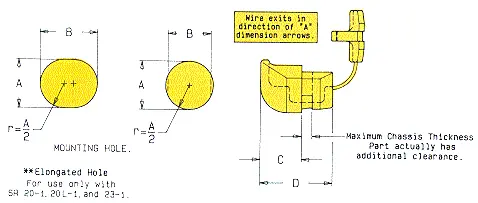

Will Fit These Cables Chassis Dimensions Part No. UL/CSA
Description 		Part Dimensions
UL
Type		 AWG/
Cond.		 App.
Size		 A Mount
Hole
Diam 		B
Prevent
Rotation		 Thickness C Head Length D Body Length
in
 mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm
SPT-1 18/2 .12x.22
3,0x5,6		 .437
x11,1		 .390
9,9		 .062
1,6		 1354 SR 13-1 .234
6,0		 .500
12,7
18/3 .12x.30
3,0x7,6		 .500
12,7		 .450
11,4		 .040
1,0		 1361 SR 14A-1 .406
10,3		 .687
17,5
SPT-2
& HPN		 18/2 .15x.28
3,8x7,1
16/2 .16x.30
4,1x7,6		 .100
2,5		 1364 SR 14-1
SPT-2 18/3 .15x.40
3,8x10,2		 .562
14,3		 .525
13,3		 .125
3,2		 1384 SR 16-1 .500
12,7		 .875
22,2
SPT-3 18/2 .19x.35
4,8x8,9
16/3 .16x.41
4,1x10,4
HPN 16/3 .16x.37
4,1x9,4
SPT-2 18/3 .19x.35
4,8x8,9		 .560
14,2 **		 .730
18,5 **		 .080
2,0		 1424 SR 20-1** .406
10,3		 .812
20,6
16/3 .16x.41
4,1x10,4
SPT-3 18/2 .19x.35
4,8x8,9
18/3 .19x.35
4,8x8,9
16/2 .20x.37
5,1x9,4
16/3 .20x.43
5,1x10,9
.125
3,2		 1434 SR 20L-1**
16/2 .20x.37
5,1x9,4		 .750
19,9 **		 .875
22,2 **		 .125
3,2		 1454 SR 23-1** .484
12,3		 .937
23,8
16/3 .20x.43
5,1x10,9
14/2 .24x.42
6,1x10,7
14/3 .24x.51
6,1x13,0
14/2 .24x.42
6,1x10,7		 .875
22,2		 .840
21,3		 .125
3,2		 1464 SR 24-1 .500
12,7		 .968
24,6
14/3 .24x.51
6,1x13,0
12/2 .29x.51
7,4x13,0
12/3 .29x.65
7,4x16,5
10/3 .32x.66
8,0x16,8		 1.093
28,0		 1.000
25,4		 .125
3,2		 1440 SR 21-2 .734
18,7		 1.437
36,5
  Standard Strain Relief Color: Black. White and othe strain relief colors available at extra charge (only in large fastener quantities)
** Use Elongated Hole



  • Each strain relief provides the same protection for your power supply cable as the Straight-Thru type AND..
  • The starin relief exits the cable flush against the chassis, saving space and directing the cable parallel to the chassis.
  • These strain relievers overcome space limitations and acts as a back or bottom bumper.
  • Standardize panel design with these strain relievers! Fill unneeded SR mounting holes with Heyco Double D Plugs, page 3-17.
  • These strain relieving parts are molded of type 6/6 nylon.  ASTM D-40660; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the part shall not exceed 105°C.
  • See pages 3-17, 3-18, 3-19 for Assembly Tools and SR Hole Punches.
    (Click here to see our guide on choosing the best strain relief fastener for your application.)
