Heyco® Right Angle Strain Relief Bushings

Heyco® Right Angle Strain Relief Bushings Component Program of Underwriters' LaboratoriesRecognized under the Component Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919

  • These strain reliefs provide the same protection for your power supply cable as the straight-thru type AND...
  • Each strain relief exits the cable flush against the chassis, saving space and directing the cable parallel to the panel.
  • The right angle strain relief overcomes space limitations and acts as a back or bottom bumper.
  • Standardize panel design! Fill unused SR mounting holes with Heyco Double "D" Plugs.

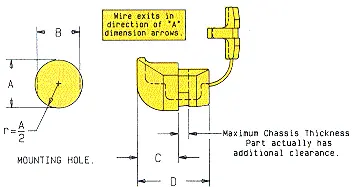

For Round Cables

WILL FIT THESE CABLES CHASSIS DIMENSIONS PART NO. UL/CSA
Desc		 PART DIMENSIONS
UL TYPE
Designation		 AWG
Conductors		 Approx
Size 		A
Mounting
Hole		 B
To Prevent
Rotation		 Maximum
Thickness		 C Head Length D
Part
Length
in.   mm. in.    mm. in.   mm. in.    mm. in. mm. in.    mm.
SV & SVT 18/2 .250 6,2 .500  12,7 .450  11,4 .100  2,5 1374 SR 15-1 .406  10,3 .687  17,5
18/3 .265 6,7 .50-  12,7
.515  13,1
HPD 18/2 .270 6,9 .500  12,7
16/2 .290 7,4 .50-  12,7
.515 13,1
SJ, SJT & SJD 18/2 .330  8,4 .625  15,9 .550  14,0 .125  3,2 1320 SR 10-2 .562 14,3 .968  24,6
16/2 .325 8,3
18/3 .330 8,4
16/3
16/2 .325 8,3 .625 15,9 .550 14,0 .125 3,2 1327 SR 11-2
18/3 .330 8,4
16/3 .355 9,0
SAME AS SR 11-2 ABOVE EXCEPT -----> .200 5,1 1330 SR11K-2
SJT 18/4 .360 9,1 .750 19,0 .650 16,8 .125 3,2 1397 SR17-2 .640 16,3 1.093  27,8
  14/3 .370 9,4
S & ST 18/3 .390 9,9
  18/3 .405 10,3
  16/2
  16/3 .430 10,9 .750- 19,0
.781 19,8
Standard Strain Relief Color: Black. White and others available at extra charge (only in large fastener quantities).
(Click here to see our guide on choosing the best nylon strain relief fasteners for your application.)
