HeycoŽ Straight-Thru Strain Relief Bushings

Heyco® Straight-Thru Strain Relief Bushings
For flat cables

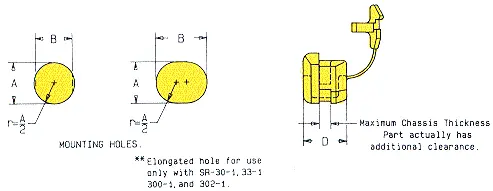

Download Cad DrawingsClick on one of the green links below to download a CAD Drawing of this product.
WILL FIT THESE CABLES CHASSIS DIMENSIONS   UL/CSA
Desc

UL TYPE
Designation
AWG
Conductors
Approx
Size
A
Mounting
Hole
B
To Prevent
Rotation
Maximum
Thickness
PART NO. D
Part
Length
in.   mm. in.    mm. in.   mm. in.    mm. Black White in.    mm.
HPN & SPT-2 16/3 .16x.37  4,1x9,4 .562  14,3 .530  13,5 .125  3,2 1174 1175 SR 5W-1 39/64  15,5
  18/3 .15x.40 3,8x10,2
  16/3 .16x.41 4,1x10,4
SPT-2 18/3 .15x.40 3,8x10,2 .560  14,2
**
.730  18,5
**
.125  3,2 1484 1485 SR 30-1
**
43/64  17,1
  16/2 .16x.41 4,1x10,4
SPT-3 18/2 .19x.35 4,8x8,9
  18/3 .19x.39 4,8x9,9
  16/2 .20x.37 5,1x9,4
  16/3 .20x.43 5,1x10,9
  16/2 .20x.37 5,1x9,4 .750  19,0
**
.875  22,2
**
.125  3,2 1504 1505 SR 33-1 25/32  19,8
  16/3 .20x.43 5,1x10,9
  14/2 .24x.42 6,1x10,7
  14/3 .24x.51 6,1x12,9
  14/2 .24x.42 6,1x10,7 .875  22,2 8.40  21,3 .125  3,2 1517 1518 SR 34-2 13/16  20,6
  14/3 .24x.51 6,1x12,9
  12/2 .29x.51 7,4x12,9
  12/3 .29x.65 7,4x16,5
  12/3
10/3
.32x.65 8,1x16,5 .875  22,2 .840  21,3 .125  3,2 1497 1498 SR 31-2
300 CHM † - .06x.40 1,5x10,2 .375  9,5 .625-  15,9-
.640  16,3
**
.156  4,0 1804 1805 SR 300-1
**
15/32  11,9
SPT-1 18/3 .12x.30 3,0x7,6 .375  9,5
.390  9,9
SPT-2 18/3 .15x.40 3,8x10,2 .415  10,5
.422  10,7
16/3 .16x.41 4,1x10,4 .422  10,7
.437  11,1
SAME AS SR 300-1 ABOVE EXCEPT -----> .100  2,5 1814 1815 SR 302-1
**
Standard Nylon Fastener Color: Black. White and others available at extra charge (only in large quantities).
† Wire is not UL/CSA covered.
**Use Elongated Hole.
Component Program of Underwriters' LaboratoriesRecognized under the Component Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919

(Click here to see our guide on choosing the best strain relief for your application.)


Labkit No. 1 (Part #1999)
Provides a working assortment for prototype and laboratory use. 180 assorted Heyco Strain Reliefs are identified in a handy compartmentalized plastic box.   Ideal for design engineering groups. Details on page 3-24.

Heyco® Straight-Thru Strain Relief Bushings Heyco® Straight-Thru Strain Relief Bushings
