HeycoŽ Wire and Cable Holders

page5-10-1.gif (9723 bytes) Underwriters' Laboratories Recognized under the Component Program of Underwriters' Laboratories File #E-54523
  • Gathers and directs single or group of cables at low cost.
  • Two orientations:
    1)  Vertical for top entry and narrow width.
    2)  Horizontal for side entry and low height where clearance is a problem.
  • Two gate types:
    1)  Regular gate secures cables with tension alone.
    2)  Latch gate.
  • Both types install with fingertip pressure into a 3/16"(4,8mm) diameter mounting hole.
  • Bayonet mount self adjusts to various chassis thickness up to .090"(2,3mm).
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2.
  • Temperature rating 85°C.

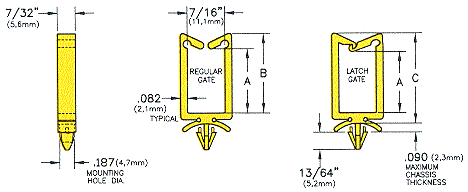

Vertical Orientation - Top Entry
Regular Gate

Download Cad DrawingsClick on one of the green links below to download a CAD Drawing of this product.
Part No. UL Description Part Dimensions
A
in.               mm.
B
in.              mm.
C
in.              mm.
3600 CH-R-12 .171            4,4 .343             8,7 .484           12,3
3605 CH-R-18 .390            9,9 .578           14,7 .718           18,2
3610 CH-R-27 .750          19,0 .937           23,8 1.062         27,0
3615 CH-R-35 1.062        27,0 1.250         31,7 1.375         35,0

Latch Gate
Part No. UL Description Part Dimensions
A
in.               mm.
B
in.              mm.
C
in.              mm.
3620 CH-L-12 .140            3,6 .343             8,7 .484           12,3
3625 CH-L-18 .360            9,1 .575           14,7 .718           18,2
3630 CH-L-27 .718          18,2 .937           23,8 1.000         27,0
3635 CH-L-35 1.031        26,2 1.250         31,7 1.375         35,0
Standard Color: White

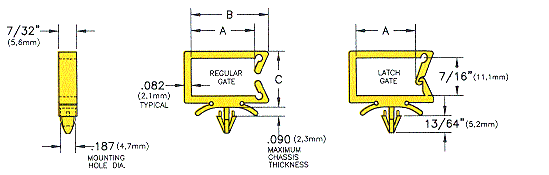

Horizontal Orientation
Regular Gate
Part No. UL Description Part Dimensions
A
in.               mm.
B
in.              mm.
C
in.              mm.
3654 3652 CH-R-27-90  3/4              19,4 59/64         23,4 21/32        16,7
3669 3667 CH-R-35-90 1-1/16       27,0 1-1/4          31,7

Latch Gate
Part No. UL Description Part Dimensions
A
in.               mm.
B
in.              mm.
C
in.              mm.
3699 3697 CH-L-27-90 23/32         18,2 59/64          23,4 21/32        16,7
3714 3712 CH-L-35-90 1-1/32        26,2 1-1/4           31,7
Standard Color: Black or White
