HeycoŽ Vent Plugs

Heyco® Vent Plugs Underwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919
  • Permits the passage of air for ventilation and heat dissipation.
  • Convex, matte finish head tapers to a thin edge.
  • Sixteen sizes for use in 1/2" (12,7mm) to 4" (101,6mm) diameter holes.
  • VP-500 thru VP-875 have 3/32" (2,4mm) diameter vent holes.  All other sizes have 1/8" (3,2mm) diameter vent holes.
  • Locks firmly into chassis up to 1/4" (6,4mm) thick.
  • Quick and easy installation with only fingertip pressure.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.

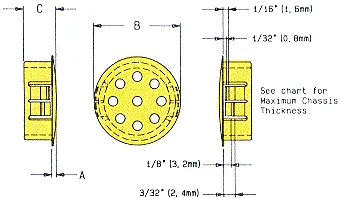

Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness		 Mounting
Hole
Diameter 		Black White Description # of
Holes		 B
Head
Diameter		 C
Overall
Height		 A
Head
Thickness
in.     mm.  in.    mm.  in.    mm.  in.  mm.  in.      mm.
.125       3,2 .500    12,7 2637 2638 VP-500 4 .578    14,7 .406  10,3 .062        1,6
.125       3,2 .625    15,8 2657 2658 VP-625 5 .734   18,7 .406  10,3 .062        1,6
.125       3,2 .750    19,0 2677 2678 VP-750 8 .906   23,0 .406  10,3 .062        1,6
.125       3,2 .875    22,2 2697 2698 VP-875 9 1.015 25,8 .453  11,5 .062        1,6
.125       3,2 1.000  25,4 2707 2708 VP-1000 9 1.203 30,6 .453  11,5 .062        1,6
.125       3,2 1.093  27,8
1.125  28,6		 2726 2727 VP-1093 9 1.218 30,9 .453  11,5 .062        1,6
.125       3,2 1.250  31,8 2743 2744 VP-1250 10 1.375 34,9 .453  11,5 .062        1,6
.125       3,2 1.250  31,8 2797 - SVP-1250 4 1.375 34,9 .453  11,5 .062        1,6
.125       3,2 1.375  34,9 2756 2757 VP-1375 11 1.500 38,1 .453  11,5 .062      1,6
.125       3,2 1.500  38,1 2766 2467 VP-1500 13 1.671 42,4 .453  11,5 .062        1,6
.125       3,2 1.750  44,5 2776 2777 VP-1750 13 1.906 48,4 .453   11,5 .062        1,6
.125       3,2 2.000  50,8 2786 2787 VP-2000 19 2.140 54,4 .468   11,9 .078        2,0
.250       6,4 2.500  63,5 2793 2794 VP-2.5 19 2.718 69,0 .750   19,1 .109        2,8
.250       6,4 3.000  76,2 2458 2459 VP-3.0 26 3.171 80,5 .750   19,1 .109        2,8
.250       6,4 3.500  88,9 2467 2468 VP-3.5 38 3.656 92,9 .750   19,1 .109        2,8
.250       6,4 4.000/101,6 2476 2477 VP-4.0 48 4.156/105,6 .750   19,1 .109        2,8
Standard Color: Black. White and others available at extra charge (only in large quantities).

Heyco® Vent Plugs
