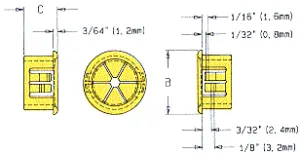

Heyco Universal Bushings

Heyco Universal Bushings Underwriters Recognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919

  • Flexible "shutters" adjust to accommodate and support any shape from 1/8" (3,2mm) to a maximum diameter of 1" (25,4mm)
  • Absorbs vibration; cushions and insulates cables, tubing, hoses or shafts.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C. Maximum temperature on the part shall not exceed 105°C.
Swipe
Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness		 Mounting
Hole
Diameter		 UL/CSA
Description		 A
Inside
Diameter		 B
Head
Diameter		 C
Overall
Height
in.       mm. in.            mm. in.            mm. in.            mm. in.             mm/
.125          3,2 .500       12,7 2055 UB-500 .312         7,6 .600        15,2   .385        9,8
.125          3,2 .625         15,9 2077 UB-625 7/16        11,1   23/32      18,3 13/32       10,3
.125          3,2 .750         19,0 2089 UB-750 1/2           12,7  55/24      21,8 25/64        9,9
.125          3,2 .812         20,6 2106 UB-812 1/2           12,7  57/64      22,6 25/64        9,9
.125          3,2 .875         22,2 2119 UB-875 9/16        14,3 15/16      23,8 29/64       11,5
.125          3,2 1.000       25,4 2137 UB-1000 3/4           19,0 1-1/16     27,0 29/64       11,5
.125          3,2 1.093       27,8 2157 UB-1093 13/16      20,6 1-5/32    29,4    29/64       11,5
.125          3,2 1.375       34,9 2184 UB-1375 1              25,4 1-7/16    36,5 29/64       11,5
.125          3,2 1.500    38,1 2213 UB-1500 1.062      26,9 1.610      40,9 .450         11,5
Standard Color: Black.  Others available at extra charge (only in large quantities).

Heyco Universal Bushings

Ask about our new Open/Closed Universal Bushings!

Heyco® Armor Bushings


Heyco® Armor Bushings Canadian Standards Association Certified by Canadian Standards Association File #LR-24719

  • Use with Flexible Armored Cable (BX) and Flexible Metallic Conduit (FMC), to insulate rough cut conduit ends.
  • Suitable for installation at temperature as low as -40°F(-40°C).
  • Chamfered lead-in allows for fast installation.
  • Size-marked for easy identification.
  • Molded of high dielectric strength material.
Swipe
      Part Dimensions
Will Fit These Armored Cables
(AWG/Conductors)		 Part No. UL/CSA
Description		 A
Inside
Diameter		 B
Head Diameter
Range		 C
Height
Range
  in.                mm. in.                mm. in.                mm.
14/2, 14/3, 12/2, 12/3 2264 AB-0 .37       9,4 .68        17,3 .58        14,7
14/4, 6/1, 4/1 2265 AB-1 .44      11,2 .70        17,8 .63        16,0
12/4, 10/2, 10/3, 2/1 2266 AB-2 .57      14,0 .85        21,6 .64        16,3
10/4, 8/2, 8/3, 1/1 2267 AB-3 .73      18,5 1.02      25,9 .67        17,0
Standard Color: Red Polyethylene

Heyco® Armor Bushings
