Bushings and Plugs: Insulation Plug and Insulation Bushings

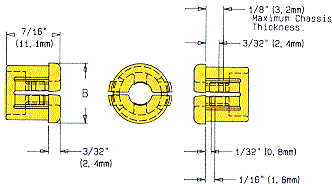

Heyco Snub Bushings


Heyco Snub Bushings Underwriters' Laboratories Recognized under the Component Program of Underwriters' Laboratories File #E-15331.
Canadian Standards Association Certified by the Canadian Standards Association File #LR-8919
  • Provides insulation plus light strain relief.
  • Suitable for 1/8" (3,2mm) to 1/4" (6,4mm) diameter cable, tubing or hose.
  • The ID opens to accept the cable then closes firmly when installed into the mounting hole.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the part shall not exceed 105°C.
Approximate
Cable Diameter
Accomodated
Mounting Hole
Diameter
Part No. UL/CSA
Description
B
Head
Diameter
in.            mm. in.         mm. in.            mm.
1/8          3,2 .375      9,5 2034 K 375-125 15/32      11,9
3/16        4,8 .437      11,1 2047 K 437-187 15/32      11,9
1/4          6,3 .500      12,7 2057 K 500-250 9/16        14,3
Standard Color:  Black.

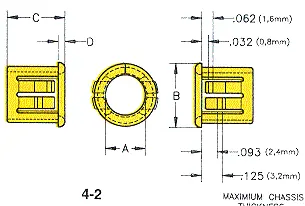

Heyco Open/Closed Bushings

Heyco Open/Closed Bushings Underwriters' Laboratories Recognized under the Component Program of Underwriters' Laboratories File #E-15331.
Canadian Standards Association Certified by the Canadian Standards Association File #LR-8919
  • Split design allows side entry and encirclement of pre-assembled harnesses, capillary tubes or other assemblies that have segments larger than the bushing's ID.
  • May also be assembled into holes that already contain cable or tubing.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the part shall not exceed 105°C.
Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness
Mounting
Hole
Diameter
UL/CSA
Description
A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
D
Head
Thickness
in.    mm. in.    mm. in.     mm. in.     mm. in.     mm. in.     mm.
.125    3,2 .375    9,5 2865 OCB-375 .265    6,7 .421    10,7 .390     9,9 .045     1,1
.125    3,2 .437    11,1 2867 OCB-437 .312    7,9 .484    12,3 .406     10,3 .062     1,6
.125    3,2 .500    12,7 2871 OCB-500 .312    7,9 .562     14,3 .406     10,3 .062     1,6
.125    3,2 .562    14,3 2869 OCB-562 .390    9,9 .640     16,3 .406     10,3 .062     1,6
.125    3,2 .625    15,9 2872 OCB-625 .453    11,5 .687     17,5 .406     10,3 .062     1,6
.125    3,2 .750    19,0 2873 OCB-750 .546    13,9 .796     20,2 .406     10,3 .062     1,6
.125    3,2 .875    22,2 2874 OCB-875 .671    17,0 .921     23,4 .406     10,3 .062     1,6
.125    3,2 1.000  25,4 2878 OCB-1000 .812    20,6 1.062   27,0 .406     10,3 .062     1,6
.125    3,2 1.093  27,8 2879 OCB-1093 .875    22,2 1.125   28,6 .406     10,3 .062     1,6
.125    3,2 1.250  31,8 2881 OCB-1250 1.046   26,6 1.343   34,1 .406     10,3 .062     1,6
.125    3,2 1.375   34,9 2882 OCB-1375 1.171   29,7 1.468   37,3 .406     10,3 .062     1,6
.125    3,2 1.500   38,1 2883 OCB-1500 1.250   31,7 1.578   40,1 .421     10,7 .078     2,0
Standard Color:  Black

Heyco Open/Closed Bushings
