Heyco® Polyurethane Adhesive Backed Bumpers

Adhesive Bumpers can be attached to a wide variety of surfaces; aluminum, ceramic, formica, glass, painted surfaces, polyethylene, polypropylene, vinyl and steel.
Quick and easy installation-simply peel off adhesive backing and press into place. With no holes to drill, and no screws or rivet needed, adhesive backed bumpers will save you time and money.
Adhesive backed bumpers are non-marking, non staining, skid and scratch resistant.
Surface must be clean, dry and free of grease, oil, and other common solvents to obtain maximum adhesion. Clean surfaces with low strength solvents such as Isopropyl Alcohol or Heptain.
Recommended storage guidelines: Temperature range 40 to 75°F (4 to 24°C), humidity range 40 to 60%. If stored as recommended, shelf-life is up to one year.
Clear and white adhesive bumper parts have an anti-yellowing agent.
Clear adhesive bumpers have acrylic-based pressure sensitive adhesive with an end use temperature of 0°F-250°F (-20°C-120°C). The pigmented products are available in 4 colors and have a rubber based pressure sensitive adhesive with an end use temperature of 0F-180°F (-20°C-82°C).

Square

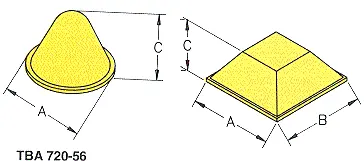

Part Specifications/Dimensions				Description	Part Numbers
A Width	B Depth	C Height	Pieces Per Pad		Clear	Black	White	Gray	Brown
in. mm.	in. mm.	in. mm.	Pieces Per Pad		Clear	Black	White	Gray	Brown
.40 10,2	.40 10,2	.10 2,5	242	SBA 4040-10	N020	N120	N220	N320	N420
.50 12,7	.50 12,7	.12 3,0	200	SBA 5050-12	N032	N132	N232	N332	N432
.50 12,7	.50 12,7	.20 5,1	200	SBA 5050-20	N003	N103	N203	N303	N403
.75 19,1	.75 19,1	.34 8,6	98	SBA 7575-34	N004	N104	N204	N304	N404
1.00 25,4	1.00 25,4	.18 4,6	55	SBA100100-18	N036	N136	N236	N336	N436

Tapered

Part Specifications/Dimensions				Description	Part Numbers
A Width	B Depth	C Height	Pieces Per Pad		Clear	Black	White	Gray	Brown
in. mm.	in. mm.	in. mm.	Pieces Per Pad		Clear	Black	White	Gray	Brown
- -	.72 18,3	.56 14,2	98	TBA 720-56	N037	N137	N237	N337	N437
.50 12,7	.50 12,7	.12 3,0	200	TBA 5050-12	N009	N109	N209	N309	N409
.50 12,7	.50 12,7	.20 5,1	200	TBA 5050-20	N010	N110	N210	N310	N410
.81 20,6	.81 20,6	.30 7,6	98	TBA 8181-30	N019	N119	N219	N319	N419
