Universal Bushings

Click the product name or part number below to request a quote.

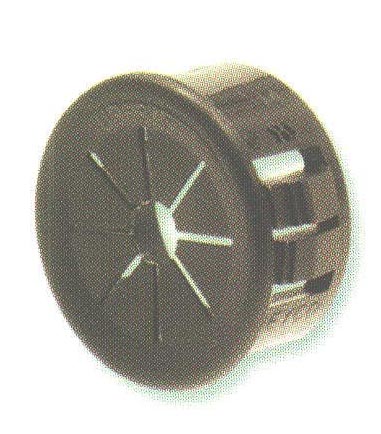

  • Flexible shutters" adjust to accommodate and support any shape from .125" (3.2 mm) to a maximum diameter of 1.062" (26.9 mm).
  • Absorbs vibration, cushions and insulates cables, tubing, hoses or shafts with limited internal clearance.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
Locking fingers in fractional increments up to the maximum panel thickness."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
2055
UB 500 BLACK
Black  UB-500  0.125  3.2  0.5  Add to Quote

2077
UB 625 BLACK
Black  UB-625  0.125  3.2  0.625  Add to Quote

2089
UB 750 BLACK
Black  UB-750  0.125  3.2  0.75  Add to Quote

2106
UB 812 BLACK
Black  UB-812  0.125  3.2  0.812  Add to Quote

2119
UB 875 BLACK
Black  UB-875  0.125  3.2  0.875  Add to Quote

2137
UB 1000 BLACK
Black  UB-1000  0.125  3.2  Add to Quote

2157
UB 1093 BLACK
Black  UB-1093  0.125  3.2  1.093  Add to Quote

2184
UB 1375 BLACK
Black  UB-1375  0.125  3.2  1.375  Add to Quote

2213
UB 1500 BLACK
Black  UB-1500  0.125  3.2  1.5  Add to Quote

Displaying 1 to 9 (of 9 products) Result Pages:  1
