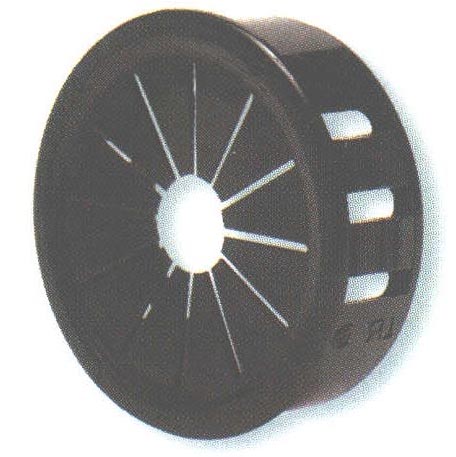

Thick Panel Universal Bushings

Click the product name or part number below to request a quote.

  • Converts raw-edged holes to smooth, neat, insulated holes.
  • Flexible shutters" to absorb vibration on the inside diameter.
  • Locking fingers "snap" into holes with fingertip pressure.
  • Withstands a push back force of 35 pounds.
  • Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines.
  • Available in 8 sizes for use in 1/2" (12.7 mm) to 1 1/2" (38.1 mm) diameter holes.
Locking fingers in fractional increments up to the maximum panel thickness."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
3001
UBT 500 BLACK
Black  UBT-500  0.25  6.4  0.5  Add to Quote

3118
UBT 625 BLACK
Black  UBT-625  0.25  6.4  0.625  Add to Quote

3119
UBT 750 BLACK
Black  UBT-750  0.25  6.4  0.75  Add to Quote

3120
UBT 875 BLACK
Black  UBT-875  0.25  6.4  0.875  Add to Quote

3121
UBT 1000 BLACK
Black  UBT-1000  0.25  6.4  Add to Quote

3002
UBT 1093 BLACK
Black  UBT-1093  0.25  6.4  1.093  Add to Quote

3003
UBT 1375 BLACK
Black  UBT-1375  0.25  6.4  1.375  Add to Quote

3122
UBT 1500 BLACK
Black  UBT-1500  0.25  6.4  1.5  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
