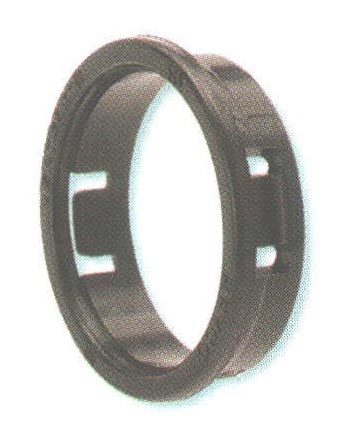

Shorty Bushings

Click the product name or part number below to request a quote.

  • Available in seventeen sizes for use in mounting holes from 3/16 (4.7 mm) to 1" (25.4 mm).
  • Insulating feed-thru bushings for limited internal clearance (minimum .125" or 3.2 mm) applications.
  • Insulates and isolates electric or telecommunications cables as well as low RPM shafts and push pull rods.
  • Locking fingers hold securely after only fingertip pressure “snap-in” installation.
Locking fingers in fractional increments up to the maximum panel thickness."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
2800
B 187-125 BLACK
Black  B 187-125  0.062  1.6  0.187  Add to Quote

2859
B 218-125 BLACK
Black  B 218-125  0.062  1.6  0.218  Add to Quote

2853
B 281-218 BLACK
Black  B 281-218  0.062  1.6  0.281  Add to Quote

2810
B 312-250 BLACK
Black  B 312-250  0.062  1.6  0.312  Add to Quote

2856
B 343-218 BLACK
Black  B 343-218  0.062  1.6  0.343  Add to Quote

2803
B 375-250 BLACK
Black  B 375-250  0.062  1.6  0.375  Add to Quote

2806
B 406-281 BLACK
Black  B 406-281  0.062  1.6  0.406  Add to Quote

2813
B 437-312 BLACK
Black  B 437-312  0.062  1.6  0.437  Add to Quote

2817
B 468-343 BLACK
Black  B 468-343  0.062  1.6  0.468  Add to Quote

2820
B 500-375 BLACK
Black  B 500-375  0.062  1.6  0.5  Add to Quote

2824
B 531-406 BLACK
Black  B 531-406  0.062  1.6  0.531  Add to Quote

2833
B 593-468 BLACK
Black  B 593-468  0.062  1.6  0.593  Add to Quote

2827
B 625-500 BLACK
Black  B 625-500  0.062  1.6  0.625  Add to Quote

2836
B 750-625 BLACK
Black  B 750-625  0.062  1.6  0.75  Add to Quote

2844
B 781-625 BLACK
Black  B 781-625  0.062  1.6  0.781  Add to Quote

2850
B 875-750 BLACK
Black  B 875-750  0.062  1.6  0.875  Add to Quote

2847
B 1000-875 BLACK
Black  B 1000-875  0.062  1.6  Add to Quote

2801
B 187-125 WHITE
White  B 187-125  0.062  1.6  0.187  Add to Quote

2860
B 218-125 WHITE
White  B 218-125  0.062  1.6  0.218  Add to Quote

2854
B 281-218 WHITE
White  B 281-218  0.062  1.6  0.281  Add to Quote

Displaying 1 to 20 (of 34 products) Result Pages:  1  2  [Next >>]
