Open/Closed Universal Bushings

Click the product name or part number below to request a quote.

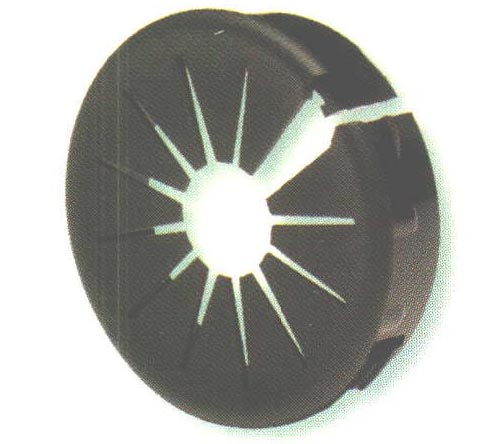

Open/Closed Universal Bushings

Click to enlarge

Split design allows side entry and encirclement of preassembled harnesses, capillary tubes or other assemblies that have segments larger than the bushing’s ID.
Parts can be assembled into holes that already contain cables or tubing.
Only fingertip pressure required to snap-lock the bushing into its mounting hole.
Flexible shutters" adjust to accommodate and support any shape from .125" to a maximum diameter of 1.062".
Absorbs vibration, cushions and insulates cables, tubing, hoses or shafts with limited internal clearance.
Available in 9 sizes for use in 1/2" (12.7 mm) to 1 1/2" (38.1 mm) diameter holes.

Locking fingers in fractional increments up to the maximum panel thickness."

	Product Name	Color	Description	Max. Thickness [inches]	Max. Thickness [mm]	Mounting Hole Diameter [inches]
2055SP	OCUB 500 BLACK	Black	OCUB-500	0.125	3.2	0.5
2077SP	OCUB 625 BLACK	Black	OCUB-625	0.125	3.2	0.625
2089SP	OCUB 750 BLACK	Black	OCUB-750	0.125	3.2	0.75
2119SP	OCUB 875 BLACK	Black	OCUB-875	0.125	3.2	0.875
2137SP	OCUB 1000 BLACK	Black	OCUB-1000	0.125	3.2	1
2157SP	OCUB 1093 BLACK	Black	OCUB-1093	0.125	3.2	1.093
2196SP	OCUB 1250 BLACK	Black	OCUB-1250	0.125	3.2	1.25
2184SP	OCUB 1375 BLACK	Black	OCUB-1375	0.125	3.2	1.375
2213SP	OCUB 1500 BLACK	Black	OCUB-1500	0.125	3.2	1.5

Displaying 1 to 9 (of 9 products)

Result Pages: 1
