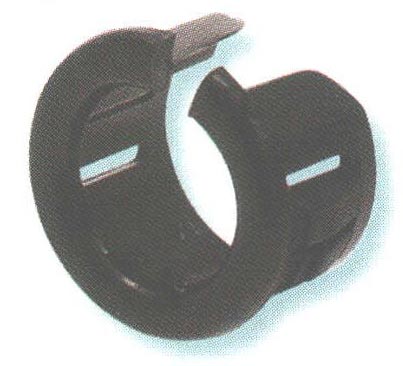

Open/Closed Bushings

Click the product name or part number below to request a quote.

  • Twelve sizes for use in mounting holes from 3/8 (9.5 mm) to 1 1/2" (38.1 mm).
  • Split design allows side entry and encirclement of preassembled harnesses, capillary tubes or other assemblies that have segments larger than the bushing’s ID.
  • May also be assembled into holes that already contain cable, wire or other filaments.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
Locking fingers in fractional increments up to the maximum panel thickness."
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
2865
OCB 375 BLACK
Black  OCB-375  0.125  3.2  0.375  Add to Quote

2867
OCB 437 BLACK
Black  OCB-437  0.125  3.2  0.437  Add to Quote

2871
OCB 500 BLACK
Black  OCB-500  0.125  3.2  0.5  Add to Quote

2869
OCB 562 BLACK
Black  OCB-562  0.125  3.2  0.562  Add to Quote

2872
OCB 625 BLACK
Black  OCB-625  0.125  3.2  0.625  Add to Quote

2873
OCB 750 BLACK
Black  OCB-750  0.125  3.2  0.75  Add to Quote

2874
OCB 875 BLACK
Black  OCB-875  0.125  3.2  0.875  Add to Quote

2878
OCB 1000 BLACK
Black  OCB-1000  0.125  3.2  Add to Quote

2879
OCB 1093 BLACK
Black  OCB-1093  0.125  3.2  1.093  Add to Quote

2881
OCB 1250 BLACK
Black  OCB-1250  0.125  3.2  1.25  Add to Quote

2882
OCB 1375 BLACK
Black  OCB-1375  0.125  3.2  1.375  Add to Quote

2883
OCB 1500 BLACK
Black  OCB-1500  0.125  3.2  1.5  Add to Quote

2885
OCB 375 WHITE
White  OCB-375  0.125  3.2  0.375  Add to Quote

2887
OCB 437 WHITE
White  OCB-437  0.125  3.2  0.437  Add to Quote

2891
OCB 562 WHITE
White  OCB-500  0.125  3.2  0.5  Add to Quote

2889
OCB 500 WHITE
White  OCB-562  0.125  3.2  0.562  Add to Quote

2892
OCB 625 WHITE
White  OCB-625  0.125  3.2  0.625  Add to Quote

2893
OCB 750 WHITE
White  OCB-750  0.125  3.2  0.75  Add to Quote

2894
OCB 875 WHITE
White  OCB-875  0.125  3.2  0.875  Add to Quote

2898
OCB 1000 WHITE
White  OCB-1000  0.125  3.2  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
