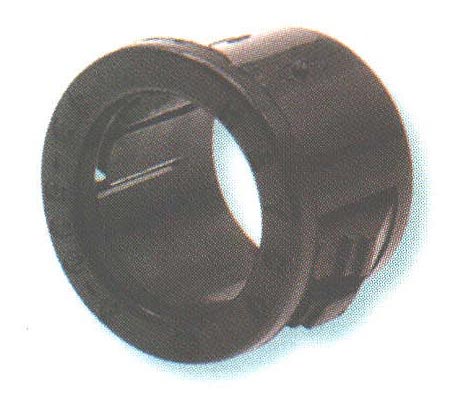

Metric Snap Bushings

Click the product name or part number below to request a quote.

  • Convert raw-edged holes to smooth ones.
  • Locking fingers “snap” into holes with fingertip pressure.
  • Withstands a push back force of 35 pounds.
  • Four sizes for use in .630 (16.0 mm) to 1.260" (32.0 mm) diameter holes.
  • Locks firmly into panel up to .098" (2.5 mm) thick.
Filter:
  Product Name  Color  Description  Max. Thickness [inches]  Max. Thickness [mm]  Mounting Hole Diameter [inches]
2142
MSB 16-12 BLACK
Black  MSB 16-12  0.098  2.5  0.63  Add to Quote

2144
MSB 20-16 BLACK
Black  MSB 20-16  0.098  2.5  0.787  Add to Quote

2146
MSB 25-19 BLACK
Black  MSB 25-19  0.098  2.5  0.984  Add to Quote

2148
MSB 32-26 BLACK
Black  MSB 32-26  0.098  2.5  1.26  Add to Quote

2143
MSB 16-12 WHITE
White  MSB 16-12  0.098  2.5  0.63  Add to Quote

2145
MSB 20-16 WHITE
White  MSB 20-16  0.098  2.5  0.787  Add to Quote

2147
MSB 25-19 WHITE
White  MSB 25-19  0.098  2.5  0.984  Add to Quote

2149
MSB 32-26 WHITE
White  MSB 32-26  0.098  2.5  1.26  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
