Home » Nut & Bolt Retainers » U-Type Nut Retainer » Metric U-Type Nut Retainer


Metric U-Type Nut Retainer

Click the product name or part number below to request a quote.

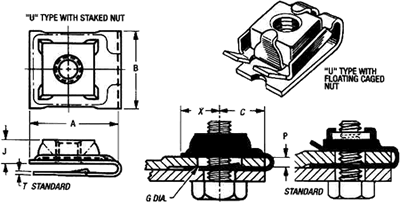

U-Type Nut Retainers offer the same advantages as the J-Type Nut Retainers. That is, heavy-duty fastening, low fastener profile, float" for hole misalignment, self-retention and blind location fastening. With the full-sized lower leg, the U-Type Nut Retainer is preferred where a full bearing surface between the panels is desired. They are applied simply and quickly in center, or end-panel locations requiring no special skills or equipment.
Filter:
  Product Name  Screw Size  Panel Range   Design Variation  Length (A)  Width (B)
Tinnerman® U-Type Nut Retainer
C33983-M508
Tinnerman® U-Type Nut Retainer
M5X.8  2.28-4.82  28  16  Add to Quote

Tinnerman® U-Type Nut Retainer
C33948-M61
Tinnerman® U-Type Nut Retainer
M6X1  1.270-1.910  C|D  18.04  17.45  Add to Quote

Tinnerman® U-Type Nut Retainer
C33823-M61
Tinnerman® U-Type Nut Retainer
M6X1  2.28-4.82  28  16  Add to Quote

Displaying 1 to 3 (of 3 products) Result Pages:  1
