Standard - Wide Panel U-Type Fasteners

Click the product name or part number below to request a quote.

The innovative line of Tinnerman® U-Nut Fasteners accommodates an unusually wide range of panel thicknesses from .025 to .150" which satisfies most needs for sheet metal and plastic assembly. A single Wide Range U-Nut can replace as many as 5 or 6 separate size nuts required to cover the same capacity. And, it can be supplied in 8AB thru 14AB thread sizes.

Filter:

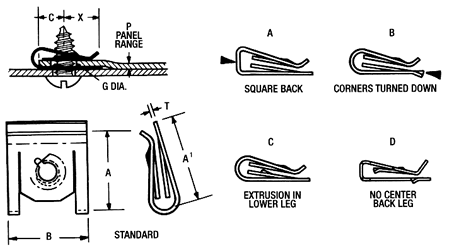

  Product Name  Screw Size  Panel Range  Design Variation  Height (A)  Length of Bottom Leg (A1)
Tinnerman® U-Type Wide Panel Range Fasteners
D19640-8AB
Tinnerman® U-Type Wide Panel Range Fasteners
8A or 8B  .025-.150  A|C  0.74  0.77  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
D6608-8
Tinnerman® U-Type Wide Panel Range Fasteners
8A or 8B  .030-.070  0.74  0.77  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
D6377-8AB
Tinnerman® U-Type Wide Panel Range Fasteners
8A or 8B  .070-.150  0.67  0.75  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
D98189-8AB
Tinnerman® U-Type Wide Panel Range Fasteners
8A or 8B  .090-.110  0.74  0.77  Add to Quote

C19527-10Z
C19527-10Z
C19527-10Z
10B  .025-.150  B|C  0.65  0.72  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
D19640-10AB
Tinnerman® U-Type Wide Panel Range Fasteners
10A or 10B  .025-.150  A|C  0.74  0.77  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
C70061-14Z
Tinnerman® U-Type Wide Panel Range Fasteners
14B  .035-.150  0.615  0.72  Add to Quote

Displaying 1 to 7 (of 7 products) Result Pages:  1
