Standard U-Type Fasteners

Click the product name or part number below to request a quote.

U-Type Speed Nuts perform the same fastening functions as the J-Type, but are used where a full bearing surface on the lower leg is desired. they are self-retained in screw-receiving position to provide simple, rapid attachement of mating panels and cannot turn as the screw is driven.

Corrosion presents no problem, as the Speed Nut will not freeze on screw threads. In fact, the Speed Nut impression actually cleans out rust, dirt or paint clots from the screw threads as they are removed.
Filter:

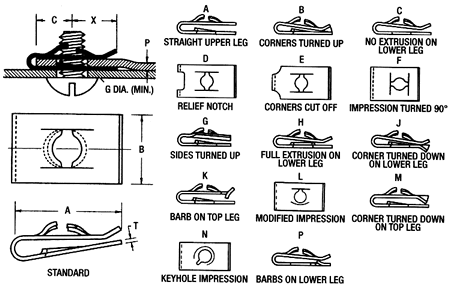

  Product Name  Screw Size  Panel Range   Design Variation  Length (A)  Width (B)
Tinnerman® U-Type Fasteners
C991-440
Tinnerman® U-Type Fasteners
4-40  .062-.094  0.39  0.252  Add to Quote

Tinnerman® U-Type Fasteners
C71117-632
Tinnerman® U-Type Fasteners
6-32  .185-.195  Std.  0.59  0.312  Add to Quote

Tinnerman® U-Type Fasteners
C71020-6
Tinnerman® U-Type Fasteners
6A or 6B  .067-.083  0.465  0.5  Add to Quote

Tinnerman® U-Type Fasteners
C11459SS-832
Tinnerman® U-Type Fasteners
8-32  .099-.104  D|C|F|K  0.7  0.63  Add to Quote

Tinnerman® U-Type Fasteners
C71281-8
Tinnerman® U-Type Fasteners
8A or 8B  .070-.090  F|D|A|B  0.512  0.5  Add to Quote

Tinnerman® U-Type Fasteners
D596-1024
Tinnerman® U-Type Fasteners
10-24  .051-.081  Std.  0.63  0.44  Add to Quote

Tinnerman® U-Type Fasteners
C9240-10A
Tinnerman® U-Type Fasteners
10A  .065-.087  0.64  0.44  Add to Quote

Tinnerman® U-Type Fasteners
D8125-10
Tinnerman® U-Type Fasteners
10A or 10B  .045-.062  0.95  0.5  Add to Quote

Tinnerman® U-Type Fasteners
C14969-1420
Tinnerman® U-Type Fasteners
1/4-20  .051-.109  0.79  0.5  Add to Quote

Tinnerman® U-Type Fasteners
C8126-14A
Tinnerman® U-Type Fasteners
14A  .028-.056  0.93  0.56  Add to Quote

Tinnerman® U-Type Fasteners
D11482-14Z
Tinnerman® U-Type Fasteners
14B  .115-.125  0.97  0.5  Add to Quote

Tinnerman® U-Type Fasteners
D17234-5618
Tinnerman® U-Type Fasteners
5/16-18  .112-.140  Std.  1.035  0.63  Add to Quote

Displaying 1 to 12 (of 12 products) Result Pages:  1
