Metric - Wide Panel U-Type Fasteners

Click the product name or part number below to request a quote.

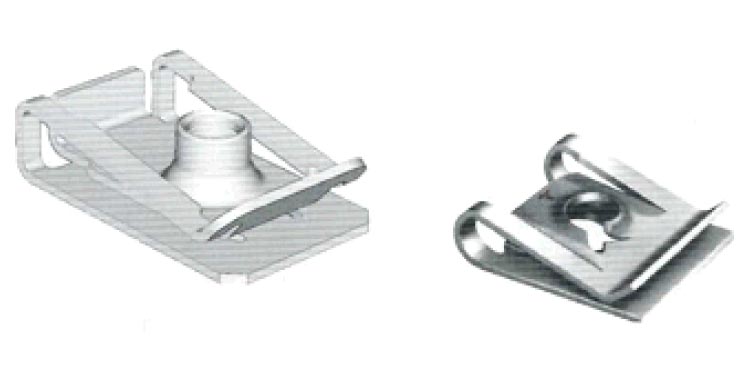

The innovative extension of the Tinnerman U-Nut product line accommodates a wide range of panel thickness from 0.5 mm to 4.0 mm. A single uMAX Wide Panel SPEEDNUT® can replace as many as 2 to 3 standard u-nuts.

The thread engaging member of the uMAX SPEEDNUT® is uniquely designed to remain perpendicular to the bolt. This feature reduces strip-outs, increases joint integrity, and prevents panel damage caused by misalignment.

The uMAX SPEEDNUT® is hinged at two points, reducing insertion efforts.

Tapped barrel versions of the parts are now available in metric thread sizes of M5 x .8, M6 x 1.0, and M8 x 1.25. Tinnerman also offers a single thread engaging uMAX SPEEDNUT® for “lighter duty” applications.
Filter:
  Product Name  Screw Size  Panel Range  Design Variation  Height (A)  Length of Bottom Leg (A1)
Tinnerman® U-Type Wide Panel Range Fasteners
D19640-8AB
Tinnerman® U-Type Wide Panel Range Fasteners
8A or 8B  .025-.150  A|C  0.74  0.77  Add to Quote

Tinnerman® U-Type Wide Panel Range Fasteners
D19640-10AB
Tinnerman® U-Type Wide Panel Range Fasteners
10A or 10B  .025-.150  A|C  0.74  0.77  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Non-Prevailing Torque)
LUGZ051513
Metric U-Type Fasteners-Wide Panel
(Non-Prevailing Torque)

M5x0.80  M5  0.8  .5-4.0  13.5  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Non-Prevailing Torque)
LUGZ061825
Metric U-Type Fasteners-Wide Panel
(Non-Prevailing Torque)

M6x1.00  M6  .5-4.0  13.5  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Non-Prevailing Torque)
LUGZ081914
Metric U-Type Fasteners-Wide Panel
(Non-Prevailing Torque)

M8x1.25  M8  1.25  .5-4.0  14.5  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Non-Prevailing Torque)
D98231-8AB
Metric U-Type Fasteners-Wide Panel
(Non-Prevailing Torque)

M4.2x1.41
(single thread impression)
M4.2 (single thread impression)  1.41  .635-3.81  8.9  Add to Quote

Palnut® Single Thread U-Nut
US420519
Palnut® Single Thread U-Nut
M4.2x1.41
(single thread impression)
M4.2 (single thread impression)  1.41  .65-3.80  8.9  Add to Quote

Palnut® Single Thread U-Nut
US420619
Palnut® Single Thread U-Nut
M4.2x1.41
(single thread impression)
M4.2 (single thread impression)  1.41  .32-6.35  8.9  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Prevailing Torque)
LPGZ051513
Metric U-Type Fasteners-Wide Panel
(Prevailing Torque)

M5x0.80  M5  0.8  .5-4.0  13.5  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Prevailing Torque)
LPGZ061825
Metric U-Type Fasteners-Wide Panel
(Prevailing Torque)

M6x1.00  M6  .5-4.0  13.5  Add to Quote

Metric U-Type Fasteners-Wide Panel<br>(Prevailing Torque)
LPGZ081914
Metric U-Type Fasteners-Wide Panel
(Prevailing Torque)

M8x1.25  M8  1.25  .5-4.0  14.5  Add to Quote

Displaying 1 to 11 (of 11 products) Result Pages:  1
