Home » Stud Receivers » Tubular Type Speed Clips » Metric Tubular Type Speed Clips


Metric Tubular Type Speed Clips

Click the product name or part number below to request a quote.

Tubular-Type Speed Clips team up with unthreaded studs or rivets to virtually nail assemblies together. Hand-snapped into punched or molded holes in metal, plastic or wood, they retain themselves in stud-receiving position. The mating panel is positioned with mounting studs properly aligned and pressed home to complete the assembly. Tubular-Type Speed Clips are ideal for making fast, practical attachments where only one side of an assembly is accessible...perfect for attaching name plates, instruction plates, grille work and decorative trim, knobs, insulationdust shields and other lightweight equipment.

Filter:

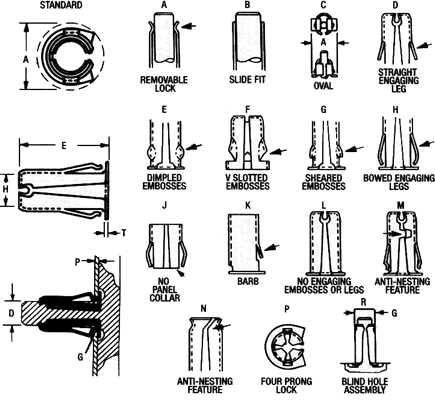

  Product Name  Stud Diameter (D)  Panel Range (P)  Design Variation  Overall Diameter (A)  Height (E)
Tinnerman® Tubular-Type Fasteners
C57969-043M
Tinnerman® Tubular-Type Fasteners
3.650-4.150  1.150-1.650  B|D  7.13  5.6  Add to Quote

Tinnerman® Tubular-Type Fasteners
C57779-043M
Tinnerman® Tubular-Type Fasteners
5.850-5.850  C|G  14.75  10.49  Add to Quote

Tinnerman® Tubular-Type Fasteners
C57238-229M
Tinnerman® Tubular-Type Fasteners
2.3970-3.120  2.290-2.790  M|D|C  11.47  10.16  Add to Quote

Displaying 1 to 3 (of 3 products) Result Pages:  1
