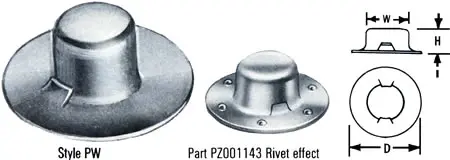

Palnut® Washer Cap Pushnut® Fasteners

Non-Threaded Applications

The Dimensions of the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

	Dimensions						Performance (Pounds)
Part Number	Steel Thick. (In.)	Height H (In.)	Cap Diam. W (In.)	Washer Dia. D (In.)	Weight Lbs./M	Stud Dia. (In.)	Push-On Force	Minimum Holding Strength
PWR 312010	.025	.235	.317	.625	3.5	5/16	100	410

*Recommended diameter tolerance of stud is +/- .002" and -.003". Surface hardness of stud must not exceed Rockwell
30T-78. Nickel-chrome plating or other hard finishes not recommended on steel studs.

	Dimensions						Performance (Pounds)
Part Number	Steel Thick. (In.)	Height H (In.)	Cap Diam. W (In.)	Washer Dia. D (In.)	Weight Lbs./M	Stud Dia. (In.)	Push-On Force	Minimum Holding Strength
PW 188007	.015	.202	.220	7/16	1.1	3/16(.188)	30	220
PW 188907	.021	.202	.230	7/16	1.3	3/16(.188)	35	230
PW 188008	.015	.202	.220	1/2	1.3	3/16(.188)	30	220
PZ 001587 Rivet Effect	.015	.202	.220	1/2	1.3	3/16(.188)	30	220
PW 250008	.018	.205	.289	1/2	1.7	1/4(.250)	65	280
PW 250009	.018	.205	.289	9/16	2.0	1/4(.250)	65	360
PZ 001143 Rivet Effect	.018	.205	.289	9/16	1.8	1/4(.250)	65	360
PZ 001725	.020	.286	.358	9/16	2.8	5/16(.312)	80	320
PW 312010	.020	.236	.358	5/8	2.7	5/16(.312)	90	460
PW 375011	.020	.234	.419	11/16	3.3	3/8(.375)	70	380
PW 375012	.025	.270	.431	3/4	4.7	3/8(.375)	90	700
PW 438014	.030	.328	.504	7/8	7.5	7/16(.438)	150	960
PW 500015	.030	.328	.567	15/16	8.8	1/2(.500)	150	800
PW 625019	.031	.413	.693	1-3/16	15.4	5/8(.625)	230	1500
