Push-On-Type Fasteners

Tinnerman Push-On-Type Fasteners provide lightning-fast attachments to plain untreated studs such as rivets, die cast studs, tubing, nails, rods, etc. They make a positive "bite" on metal, plastic or wood and grip securely even on smooth, hard surfaces. No threaded devices of any kind are necessary; therefore, the rate of assembly can be greatly increased through their use. Attachments can be made permanent or removable, as the product requires, by simply using the proper fastener or stud modification recommended. Made of quality high carbon spring steel, heat treated, they assure long, dependable service life at a minimum of assembly cost.

The dimensions of the parts listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Metric parts listed in italic

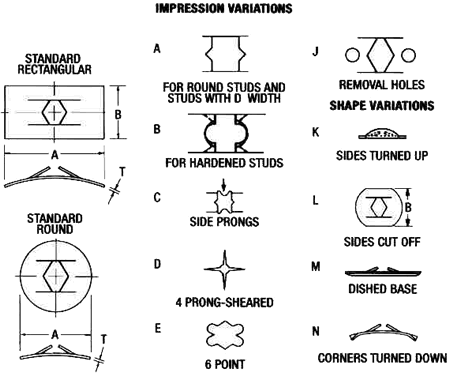

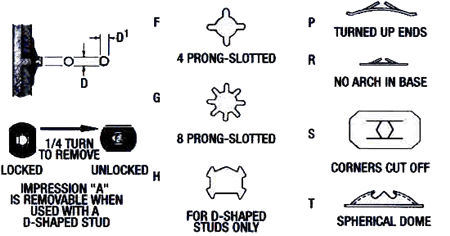

Part Number	D Dia. Stud Size	D1 Dia. Stud Size	Type	Design Var.	A Length or Dia.	B Width	T Matl. Thick.
C12001-012	.059-.065	.044-.054	Rect.	A	.380	.220	.012
C11033-012	.059-.065	----	Round	Std.	.500	--	.012
C12002-012	.091-.097	.069-.079	Rect.	A	.450	.230	.012
C13388SS-010	.091-.097	----	Round	CR	.220	--	.010
C12003-012	.122-.0128	.095-.105	Rect.	A	.580	.310	.012
C17969-012	.122-.128	----	Round	Std.	.430	--	.012
C17182-012	.153-.159	.120-.130	Rect.	AJ	.870	.560	.012
C13790-012	.153-.159	----	Round	DM	.380	--	.012
C12005-017	.185-.191	.145-.155	Rect.	A	.630	.380	.017
C18234-187	.185-.191	----	Round	FM	.560	--	.011
C12006-017	.216-222	.170-.180	Rect.	A	.620	.440	.012
C12045-017	.216-.222	----	Round	L	.500	.380	.017
C71631-030M	6.10-6.25	----	Round	AR	19.05	--	.300
C573-012	.247-.253	.182-.192	Rect.	A	.640	.560	.012
C12046-017	.247-.253	----	Round	L	.560	.440	.017
C7818-014	.309-.315	----	Rect.	Std.	.630	.500	.014
C17022SS-010	.309-.315	----	Round	GR	.630	--	.010
C12009-020	.372-.378	.295-.0305	Rect.	A	.750	.560	.020
C18235-375	.372-.378	----	Round	FM	.730	--	.014
C6313-020	.436-.438	----	Rect.	Std.	1.00	.690	.020
C11600-017	.470-.475	----	Round	BL	.910	.630	.017
C867-017	.495-.505	----	Rect.	P	.920	.750	.017
C70524-014	.495-.505	----	Round	FR	.790	--	.014
D98166-043M	14.00-14.00	----	Rect.	Std.	31.00	22.30	.430
C1529-017	.620-.630	----	Rect.	Std.	.980	.810	.017
C70891SS-014	.622-.628	----	Round	GR	.960	--	.014
C15802-025	.740-.750	----	Round	GR	1.630	--	.025
C1583-017	.745-.755	----	Rect.	P	1.480	1.250	.017
C7195-017	.995-1.005	----	Rect.	PS	1.450	1.250	.017
C13232-017	.995-1.005	----	Round	A	2.300	--	.017
C10044-014	1.997-2.003	----	Rect.	FN	2.75	2.75	.014

Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
