Robotics Nut

Robotics Nut


On this page are examples of Expansion-Type Fasetners, also called robotic nuts, which have been developed to solve specific fastening problems. The expansion principle is the same, but forms vary to: plug a temporarily unused hole, provide vibration-resisting adjustment, fasten in wood, heavy gauge metal or odd-shaped panel holes. They illustrate Tinnerman's ability to help the manufacturer fasten his product better, faster and at a lower cost.

Perhaps one of these "Specials" will suit or suggest an answer to your particular fastening problems.

Robotics NutThe Dimensions of the parts listed are envelope dimensions only. For complete design information on our robotics nuts, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Metric parts listed in italic

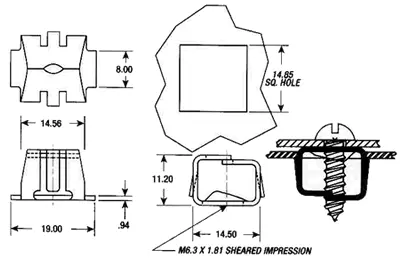

Part Number Screw Size P Panel Range T Material Thickness
C71690-M63181 M6.3x1.81 .900-1.200 .940

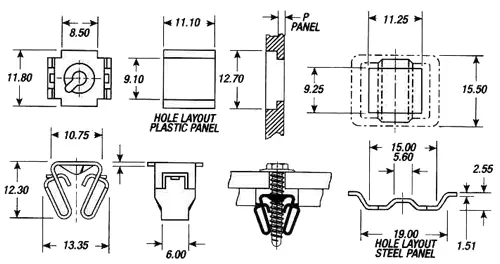

Robotics Nut


Part Number Screw Size P Panel Range T Material Thickness
  D98972-064M M4.2 2.300-2.800 .640
  D98919-071M M4.2 2.300-2.800 .710

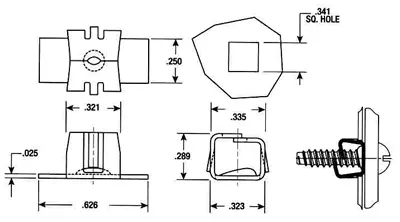

Robotics NutMaterial:
All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
Part Number Screw Size P Panel Range T Material Thickness
  D98621-8Z 8B .028-.039 .025
  D98683-8Z 8B .039-.059 .025
