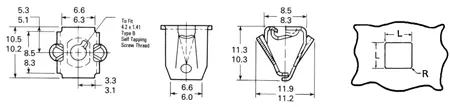

Palnut® Insert Panel Retained Nut - For Thin Metals

Palnut® insert panel retained nut offers a heat treated, spring steel, single thread form in a snap-in style fastener. Th nuts are recommended for application in metal panels of .70mm/1mm or .028-039" thickness, with a hole dimension of 8mm or 5/16" square.

The Dimensions of the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Part Number	Screw Size	A	B	C	D	E	F	G	H	I
IPTS 428101	4.2 mm x 1.41mm (8-18)	10.35 (.407)	5.18 (.204)	6.45 (.254)	7.75 (.305)	3.22 (.127)	6.85 (.270)	7.75 (.305)	11.0 (.433)	11.1 (.437)

Recommended Panel Hole Dimensions
R	L
0-0.3	8.65-8.75
0.95-1.05	8.90-9.10
1.42-153	9.16-9.36

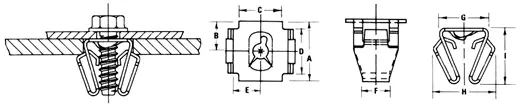

Palnut® Insert Panel Retained Nut - For Plastic Panels

Panel
Screw Size	Hole Dimension	Thickness	Part Number
4.2 mm x 141 mm (8-18)	9 x 11 mm (.354 x .433)	2.3/2.8 mm (.090-.110)	IPPS 429925
4.2 mm x 141 mm (8-18)	8 x 10 mm (.315 x .394)	2.1/2.5 mm (.083-.098)	IPPS 428025

Part Number	Screw Size	A	B	C	D	E	F	G	H	I
IPPS 429925	4.2 mm x 1.41mm (8-18)	11.8 (.465)	5.9 (.232)	8.5 (.335)	8.75 (.344)	5.37 (.211)	5.0 (.196)	10.75 (.432)	13.55 (.533)	12.3 (.484)
IPPS 428025	4.2 mm x 1.4 1mm (8-18)	10.6 (.417)	5.3 (.209)	6.5 (.256)	7.70 (.303)	4.87 (.192)	4.2 (.165)	9.75 (.384)	12.55 (.494)	12.3 (.484)
