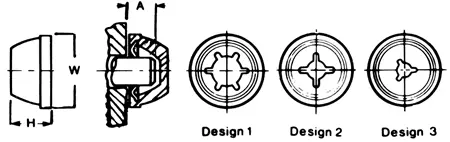

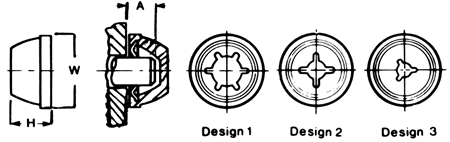

Palnut® Plastic Caps

Palnut offers a full range of plastic caps the user must evaluate the required performance characteristics required of the Plastic Cap and its dimensions

Maximum Push ON force
Minimum Holding Strength
Cap height
Cap Diameter

		Dimensions				Performance
Part Number	Stud, Rod, or Wire Shaft Diam. (In.)	Cap Outside Diameter W (In.)	Height Overall H (In.)	Minimum Shaft Extension A (In.)	Steel Thickness (In.)	Tooth Design	Maximum Push-On Force	Minimum Holding Strength
KPS 125105	1/8	.656	.344	.150	.012	3	25 lbs.	140 lbs.
KPS 156105	5/32	.656	.344	.150	.012	3	30 lbs.	200 lbs.
KPS 188105	3/16	.656	.344	.150	.012	3	35 lbs.	220 lbs.
KPS 250105	1/4	.656	.344	.150	.012	2	40 lbs.	400 lbs.
KPS 250135	1/4	.835	.440	.175	.015	2	45 lbs.	600 lbs.
KPS 296135	19/64	.835	.440	.175	.015	1	50 lbs.	750 lbs.
KPS 312135	5/16	.835	.440	.175	.015	1	60 lbs.	700 lbs.
KPS 375135	3/8	.835	.440	.175	.015	1	85 lbs.	700 lbs.
KPS 438210	7/16	1.300	.645	.200	.018	1	110 lbs.	700 lbs.
KPS 375210	3/8	1.300	.645	.200	.018	1	85 lbs.	1200 lbs.
KPS 500210	1/2	1.300	.645	.200	.018	1	90 lbs.	1200 lbs.
KPS 625210	5/8	1.300	.645	.200	.018	1	90 lbs.	1200 lbs.
KPS 750210	3/4	1.300	.645	.200	.018	1	95 lbs.	1200 lbs.
KPS 008215	8mm	21.2	11.2	4.4	.38	1	267 N	3115 N
KPS 009215	9mm	21.2	11.2	4.4	.38	1	334 N	3115 N

Available Colors

Select a color from the list below and add the code number to the end of
the KPS part you'd like to purchase

EW - White
ET - Beige
EB - Black
VU273 - Green (Pantone #356C)
ER - Red (Pantone #193C)
EQ - Special Red (Pantone #1795C)
VU451 - Malibu Pink (Pantone #238C)
ED - Cobalt Blue
EO - Ocean Blue (Pantone #2945C)
EY - Light Yellow (Pantone #3955C)
BY - Banana Yellow (Pantone #115C)
FY - Fluorescent Yellow
HG - Hunter Green (Pantone #3302)

Note: Pantone numbers are for reference only, not exact matches
