Nut Retainers



Nut Retainers





Tinnerman® Nut Retainers combine the best advantages of spring steel fasteners with the high strength of a multi-threaded nut. They snap readily into bolt-receiving position at panel, edges or center-panel locations and retain themselves in place. Their application does not require special tools or skills, eliminating the need for special operations. They can be appllied at any convenient spot along the assembly line after painting or porcelainizing, thus elimi-nating the need for masking or retapping clogged threads. The nut floats within the spring steel cage more than enough to offset normal hole misalignment. No other line of heavy duty fasteners offers so many advantages for blind location assembly.

How to apply Nut Retainers:

One retaining leg of the Nut Retainer is inserted in the panel hole. The other leg is snapped in place with a simple tool.

The second panel is then aligned and the bolt is started into the threads of the captive nut.

The Nut Retainer, being self-retained in a square hole, cannot turn as the bolt is tightened. Positive, high torque attachment is the result.

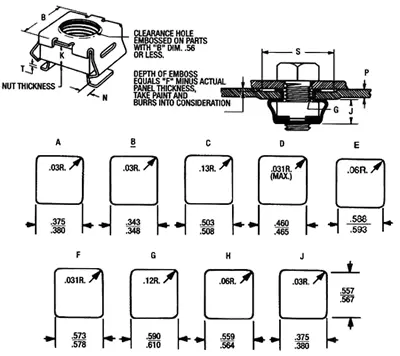

Nut Retainers


The Dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us.

Metric parts listed in italic

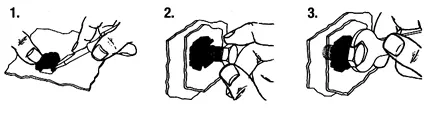

How To Apply Nut Retainers
    How To Apply Nut Retainers
  1. One retaining leg of the Nut Retainer is inserted in the panel hole. The other leg is snapped in place with a simple tool.
  2. The second panel is then aligned and the bolt is started into the threads of the captive nut.
  3. The Nut Retainer, being self-retained in a square hole, cannot turn as the bolt is tightened. high-torque attachment is the result.

  Part Number Screw Size P Panel Range F S Emboss
Sq. (min)
G Mount
Hole
B J N K T Material
Thickness
  D30395-632 6-32 .025-.063 .097 .421 .281 sq. .450 .190 .060 .124 .017
  D7941-632 6-32 .064-.105 .140 .531 A or B .520 .250 .060 .156 .020
  D7951-632 6-32 .093-.126 .160 .531 A or B .520 .250 .060 .156 .020
  D7931-M407 M4x.7 .635-1.60 2.54 13.487 A or B 13.208 6.35 1.524 3.962 .508
  D7941-M407 M4x.7 1.626-2.667 3.556 13.487 A or B 13.208 6.35 1.524 3.962 .508
  D7931-832 8-32 .025-.063 .100 .531 A or B .520 .250 .060 .156 .020
  D7941-832 8-32 .064-105 .140 .531 A or B .520 .250 .060 .156 .020
  D7951-832 8-32 .093-.126 .160 .531 A or B .520 .250 .060 .156 .020
  D31365-832 8-32 .125-.156 .190 .531 A or B .520 .250 .060 .187 .020
  D7931-1024 10-24 .025-.063 .100 .531 A or B .520 .250 .060 .156 .020
  D7941-1024 10-24 .064-.105 .140 .531 A or B .520 .250 .060 .156 .020
  D7957-1024 10-24 .093-.126 .175 .734 C or D .660 .300 .100 .218 .025
  D31365-1024 10-24 .125-156 .190 .531 A or B .520 .250 .060 .187 .020
  D7931-1032 10-32 .025-.063 .100 .531 A or B .520 .250 .060 .156 .020
  D98579-1032* 10-32 .064-.105 .140 .531 A or B .520 .250 .060 .156 .020
  D7951-1032 10-32 .093-.126 .190 .531 A or B .520 .250 .060 .156 .020
  D7941-M508 M5x.8 1.626-2.667 3.556 13.487 A or B 13.208 6.35 1.524 3.962 .508
  D7931-1224 12-24 .025-.063 .100 .531 A or B .520 .250 .060 .156 .020
  D7988-M61 M6x1 .635-1.60 2.540 13.487 A or B 13.208 6.35 1.524 4.75 .508
  D98580-M61* M6x1 1.62-2.67 3.56 13.49 A or B 13.21 6.35 1.52 4.72 .510
  D7988-1420 1/4-20 .025-.063 .100 .531 A or B .520 .250 .060 .187 .020
  D98580-1420* 1/4-20 .064-.105 .140 .531 A or B .520 .250 .060 .186 .020
  D7956-1420 1/4-20 .093-.126 .160 .531 A or B .520 .250 .060 .187 .020
  D98581-1420* 1/4-20 .125-.156 .190 .531 A or B .520 .250 .060 .186 .020
  D7937-5618 5/16-18 .028-.056 .095 .734 C or D .660 .300 .100 .218 .025
  D7957-5618 5/16-18 .093-.126 .175 .734 C or D .660 .300 .100 .218 .025
  D7935-5618 5/16-18 .127-.162 .205 .734 C or D .660 .300 .100 .218 .025
  D7957-5624 5/16-24 .093-.126 .175 .734 C or D .660 .300 .100 .218 .025
  D7957-M8125 M8x1.25 .2.362-320 4.445 18.644 C or D 16.764 7.62 2.54 5.537 .635
  D31910-M8125 M8x1.25 4.496-5.004 6.223 18.644 C or D 16.764 7.620 2.54 5.537 .635
  D7937-3816 3/8-16 .028-.056 .095 .734 C or D .660 .300 .100 .218 .025
  D7969-3816 3/8-16 .093-.126 .165 .828 E or H .870 .410 .100 .304 .025
  D30683-3816 3/8-16 .162-.210 .245 .828 G or F .870 .410 .100 .304 .025
  D30096-3816 3/8-16 .240-.260 .305 .812 E or F .870 .410 .100 .304 .025
  D30096-3824 3/8-24 .240-.260 .305 .812 E or F .870 .410 .100 .304 .025
  D7935-M1015 M10x1.5 3.226-4.115 5.207 18.644 C or D 16.764 7.620 2.54 5.537 .635
  D7969-7614 7/16-14 .093-.126 .165 .828 E or F .870 .410 .100 .304 .025
  D30683-7614 7/16-14 .162-.210 .245 .828 G or F .870 .410 .100 .304 .025
  D7968-1213 1/2-13 .059-.092 .135 .828 E or F .870 .410 .110 .304 .025
  D7925-1213 1/2-13 .127-.162 .205 .828 E or F .870 .410 .100 .304 .025
  D30096-1213 1/2-13 .240-.260 .305 .812 E or F .870 .410 .100 .304 .025

*Stainless Steel Parts
