Bolt Retainers
Bolt Retainers




Tinnerman Bolt Retainers eliminate problems of blind location, bolt retention, threaded stud damage, paint-clogged threads, weld flash and difficult assembly or removability wherever threaded studs may be used. they can be attached after finishing and just before final assembly to eliminate thread damage due to stacking, weld flash, paint clogging, etc. One type is mounted from the front to ease assembly in blind or difficult locations. Both are self-retained and can be easily removed and replaced without damage to the mounting panel. Access to the underside of the panel is unnecesary because the bolt cannot turn as the nut is driven to its prescribed torque. A shallow emboss allows flush mounting of mating panels.

How to aply Bolt Retainers

Hold the thread bolt between the thumb and forefinger. Tip the retainer into the mounting hole allowing the wing-like spring legs to rest on the panel. Allowing the wing-like spring legs to rest on the panel. Apply a rearward pressure on the top panel side of the bolt until the embossed shear snaps into the panel hole locking the Bolt Retainer in position.


Bolt Retainers

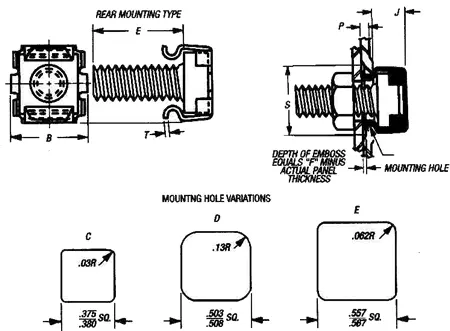

The dimensions of the parts listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Metric parts listed in italic


How to apply Bolt Retainers

How to apply Bolt RetainersHow to apply Bolt RetainersHow to apply Bolt Retainers

Hold the threaded bolt between the thuimb and forefinger. Tip the retainer into the mounting hole allowing the wing-like spring legs to rest on the panel. Aplly a rear ward pressure on the top panel side of the bolt until the embossed shear snaps into the panel hole locking the Bolt Retainer in position.

Part Number Screw Size Panel Min Panel Max J
Length
B
Width
E
Bolt
Length
H
Mounting
Hole
  C34030-1420 1/4 x 20 2.49 3.00 19.05 19.05 19.05 Special
  D98655-M8125 M8 x 1.25 .500 1.00 16.30 16.75 50.00 12.85
  C33987-M61 M6 x 1.00 .650 1.60 13.86 13.48 22.00 9.60
  D98796-M8125 M6X1.25 2.00 2.00 16.75 16.30 50.00 12.85



Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only
variations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
