Palnut® Pushnut® Bolt Retainers

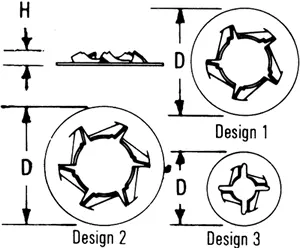

The dimensions of the parts listed below are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Part Number Bolt Diameter Design Diameter D Height H Material Thickness Push-On Force Lbs. (Max) Holding Strength Lbs. (Min) Weight Lbs./M Pieces   PT138055 6 3 11/32 .049 .010 17 40 0.2   PT164006 8 3 3/8 .049 .010 22 50 0.3   PT164008 8 3 .500 .049 .010 22 50 0.5   PT190007 10 3 7/16 .065 .012 25 65 0.4   PT250008 1/4 1 1/2 .078 .010 25 90 0.5   PT312010 5/16 1 5/8 .082 .013 30 100 0.9   PT375125 3/8 2 25/32 .093 .015 30 150 1.7   PT438135 7/16 2 27/32 .103 .015 30 250 1.9   PT500015 1/2 2 15/16 .122 .015 30 300 2.3   PT562157 9/16 2 .984 .150 .015 50 310 2.8
