Trim Clip Fasteners



Trim Clip Fasteners

Trim Clip Fasteners were recently introduced, these unique Tinnerman fasteners have real potential as a general purpose fastener.

Designed for use over rectangular studs or integrally molded blades, ribs, etc., on trim strips, access plates, or any light application where removing the fastener is a factor.

How to apply Trim Clip Fasteners
Trim Clip fasteners are simply pressed over the stud, blade, rib, etc., with barbed, u-shaped retaining legs fully seated.

Then, as part of the strip or plate assembly, the fastener is pressed into assembled position on the panel, frame, door, appliance, or whatever.

Rectangular mounting holes or gaps between panel or frame members serve as anchor points for the fastener. The self-equalizing retaining legs are formed into a dart-type configuration for easy mounting. They assure a snug, rattle free installation, yet will yield to deliberate removal force applied to the trim or plate.


Trim Clip Fasteners

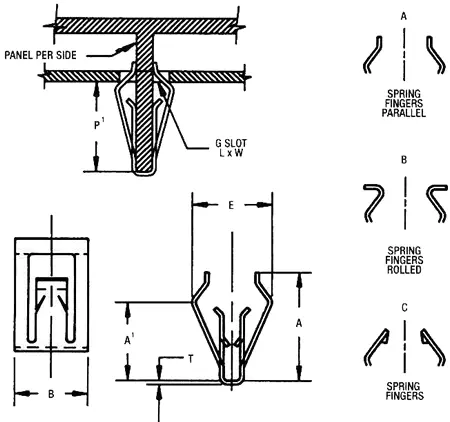

The dimensions of the parts listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Metric Parts Listed In Italic

  Part
Number
P Panel
Range
P1 Panel
Range
Design
Var.
A Length A1 Length B Width E Height G Mounting
Hole
T Matl.
Thick.
  C57951-051M 1.000-1.500 2.500-3.000 B 16.200 10.400 10.000 10.700 8.500x16.000 .510
  D98676-056M 1.120-1.380 -- B 18.200 10.700 10.000 9.000 6.000x12.000 .560
  D98646-043M 1.170-1.430 6.460-6.460 C 9.500 4.600 10.500 7.800 6.250x11.000 .430
  C57979-051M 1.250-1.750 -- A 12.000 5.100 17.800 6.100 5.400x25.400 .510
  C58179-051M 1.250-1.750 5.000-6.700 Std. 12.000 5.100 17.800 6.100 5.400x25.400 .510
  C58005-036M 1.250-1.750 5.700-5.700 B 13.000 5.500 11.000 6.100 5.400x25.400 .360
  C57998-043M 1.300-1.800 8.000-8.000 C 12.900 4.700 11.000 6.100 5.300x25.400 .430
  C58306-043M 1.300-1.800 8.200-8.200 C 12.900 5.400 11.000 6.100 5.300x25.400 .430
  D98648-051M 1.370-1.770 12.130-12.130 C 16.500 10.200 10.000 12.000 8.250x20.000 .510
  D98721-051M 1.600-2.000 -- C 15.100 6.250 10.250 12.000 8.250x20.000 .510
  D98641-051M 1.700-2.000 -- A 14.880 6.750 10.000 12.700 8.000x18.000 .510
  D98595-051M 1.700-2.100 12.130-12.130 A 16.500 10.200 10.000 12.500 8.250x16.000 .510
  D98595-051M 1.700-2.100 12.130-12.130 A 16.500 10.200 10.000 12.500 8.250x16.000 .510
  D98568-051M 1.700-2.100 12.130-12.130 A 16.500 10.200 10.000 12.500 8.250x16.000 .510
  D98568-056M 1.700-2.100 12.130-12.130 A 16.500 10.200 10.000 12.500 8.250x16.000 .560
  D98674-051M 1.700-2.100 12.130-12.130 B 16.500 10.200 10.000 12.500 8.250x16.000 .510
  D98640-051M 1.700-2.100 -- B 16.500 10.200 10.000 12.500 8.250x16.000 .510
  D98653-056M 1.700-2.100 -- B 14.550 8.800 10.000 14.000 10.800x19.200 .560
  D98460-051M 1.800-2.250 -- A 14.250 10.400 10.000 10.700 8.500x16.000 .510
  D98666-051M 1.800-2.250 12.300-12.300 B 14.250 10.400 10.500 10.700 8.500x16.000 .510
  D98597-030M 2.000-2.250 -- A 7.400 4.500 10.500 7.500 5.500x12.700 .300



Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only
variations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
