Home » Palnut® Recessed Fixture Retaining Clips

Palnut® Recessed Fixture Retaining ClipsPalnut® Recessed Fixture Retaining Clips

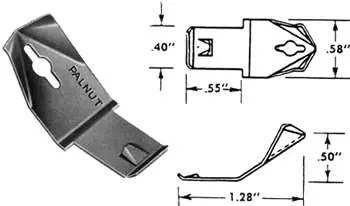

Part ZO 001592 mounts either round or rectangular housings. Only basic dimensions are given below, but complete details are shown on the drawing. If samples are requested, please ask for a copy of the blueprint to be included.

To Install

  1. Slide housing through ceiling opening into plaster frame. Plaster frame must be fastened firmly in place, nailed, plastered or with hanger bars.
  2. Twist housing until Palnut® clip fastener snaps into slots in housing
  3. Push housing up until snug against ceiling.
Palnut® Recessed Fixture Retaining Clips



Round Housing

    To Remove
  1. Each fastener, in succession, is pressed away from housing with a screwdriver. As this is done, housing "walks" downward. When down enough to be grasped, the housing is rotated to free the Clips from slots. Housing is then pulled down and out.

    Rectangular Housing

  2. Housing is moved sideways until Clip fasteners are free of slots, then pulled down and out.

Part ZO 001652 mounts round
Part ZO 001593 mounts rectangular housings.
Only basic dimensions are given below, but complete details are shown on the drawing. If samples are requested, please ask to have a copy of the blueprint sent too.

Palnut® Recessed Fixture Retaining Clips

Palnut® Recessed Fixture Retaining Clips
