Home » Stud Receivers » Palnut® Washer Cap Pushnut Fasteners

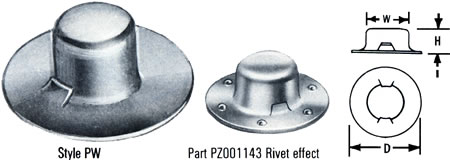

Palnut® Washer Cap Pushnut Fasteners

Click the product name or part number below to request a quote.

Tinnerman® and Palnut® Stud Receivers are ideal for applications using plain unthreaded studs such as rivets, die cast studs, tubing, nails, rods, etc. The benefits of these fasteners include:
  • Ease of application- fasteners quickly zip over unthreaded studs.
  • Positive retention, even on very smooth, hard surfaces.
  • Vibration-proof attachment.
  • Versatility- These fasteners can be made permanent or removable, as the product requires, by using the proper fastener or stud modification.
  • Reduction of parts handling, eliminating the need for special nuts, threaded collars and washers.
Design variations of our stud receivers are numerous- they can be ordered to fit over a wide range of stud sizes and shapes.
Filter:
  Product Name  Steel Thickness (In.)  Height (H) (In.)  Cap Diameter (W) (In.)  Washer Diameter (D) (In.)  Weight Lbs./M
PWR 312010
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.025  0.235  0.317  0.625  3.5  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 188007
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.015  0.202  0.22  41471  1.1  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 188907
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.021  0.202  0.23  41471  1.3  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 188008
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.015  0.202  0.22  41276  1.3  Add to Quote

PZ 001587 Rivet Effect
PZ 001587 Rivet Effect
0.015  0.202  0.22  41276  1.3  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 250008
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.018  0.205  0.289  41276  1.7  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 250009
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.018  0.205  0.289  41533  Add to Quote

PZ 001143 Rivet Effect
PZ 001143 Rivet Effect
0.018  0.205  0.289  41533  1.8  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PZ 001725
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.02  0.286  0.358  41533  2.8  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 312010
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.02  0.236  0.358  41402  2.7  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 375011
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.02  0.234  0.419  41594  3.3  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 375012
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.025  0.27  0.431  41337  4.7  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 438014
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.03  0.328  0.504  41463  7.5  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 500015
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.03  0.328  0.567  15/16  8.8  Add to Quote

Palnut® Washer Cap Pushnut® Removable Type Fastener
PW 625019
Palnut® Washer Cap Pushnut® Removable Type Fastener
0.031  0.413  0.693  42372  15.4  Add to Quote

Displaying 1 to 15 (of 15 products) Result Pages:  1
