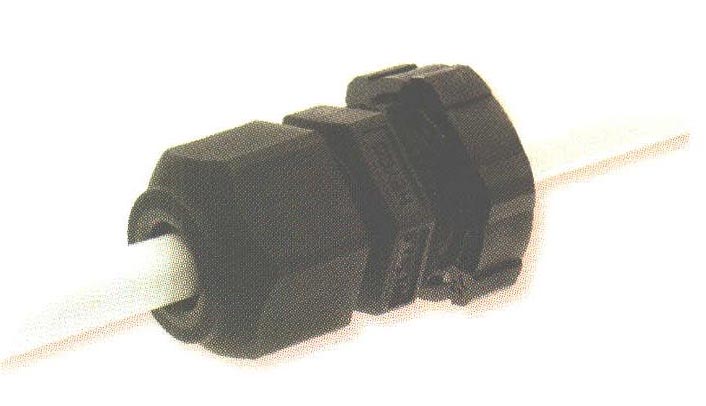

Metric Liquid Tight Straight-Thru Cordgrips

Click the product name or part number below to request a quote.

For Flexible Cords. Metric Hub - For use in clearance or threaded holes
US and Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to 1.260" (32.0 mm).
  • "Ratchet design" of sealing nut assembly provides superior antivibration protection and ensures a firm grip on this cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
  • Standard flammability rating 94V-2.
Filter:
  Product Name+  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4332
LTCG M12 BLACKw/M9130 NUT
Black  LTCG M12  0.115  2.9  0.25  Add to Quote

M4333
LTCG M12 GRAYw/M9131 NUT
Gray  LTCG M12  0.115  2.9  0.25  Add to Quote

M4336
LTCG M16 BLACKw/M9132 NUT
Black  LTCG M16  0.105  2.7  0.312  Add to Quote

M4337
LTCG M16 GRAYw/M9133 NUT
Gray  LTCG M16  0.105  2.7  0.312  Add to Quote

M4340
LTCG M20 BLACKw/M9134 NUT
Black  LTCG M20  0.17  4.3  0.45  Add to Quote

M4341
LTCG M20 GRAYw/M9135 NUT
Gray  LTCG M20  0.17  4.3  0.45  Add to Quote

M4344
LTCG M25 BLACKw/M9136 NUT
Black  LTCG M25  0.485  12.3  0.709  Add to Quote

M4345
LTCG M25 GRAYw/M9137 NUT
Gray  LTCG M25  0.485  12.3  0.709  Add to Quote

M4348
LTCG M32 BLACKw/M9138 NUT
Black  LTCG M32  0.59  15  Add to Quote

M4349
LTCG M32 GRAYw/M9139 NUT
Gray  LTCG M32  0.59  15  Add to Quote

M4352
LTCG M40 BLACKw/M9140 NUT
Black  LTCG M40  0.865  22  1.26  Add to Quote

M4353
LTCG M40 GRAYw/M9141 NUT
Gray  LTCG M40  0.865  22  1.26  Add to Quote

M4330
RLTCG M12 BLACKw/M9130 NUT
Black  RLTCG M12  0.065  1.7  0.22  Add to Quote

M4331
RLTCG M12 GRAYw/M9131 NUT
Gray  RLTCG M12  0.065  1.7  0.22  Add to Quote

M4334
RLTCG M16 BLACKw/M9132 NUT
Black  RLTCG M16  0.065  1.7  0.187  Add to Quote

M4335
RLTCG M16 GRAYw/M9133 NUT
Gray  RLTCG M16  0.065  1.7  0.187  Add to Quote

M4338
RLTCG M20 BLACKw/M9134 NUT
Black  RLTCG M20  0.095  2.4  0.26  Add to Quote

M4339
RLTCG M20 GRAYw/M9135 NUT
Gray  RLTCG M20  0.095  2.4  0.26  Add to Quote

M4342
RLTCG M25 BLACKw/M9136 NUT
Black  RLTCG M25  0.25  6.4  0.485  Add to Quote

M4343
RLTCG M25 GRAYw/M9137 NUT
Gray  RLTCG M25  0.25  6.4  0.485  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
