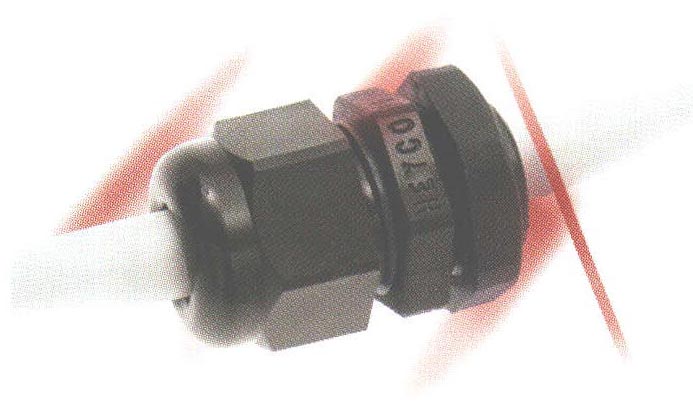

Liquid Tight Straight-Thru Cordgrips - US Patent No. 5405172

Click the product name or part number below to request a quote.

For Flexible Cords. PG HUBS - For use in clearance or threaded holes. For a wider range of materials, cable sizes, and threads. Heyco-Tite Cordgrips
Foreign Patents
  • Seventeen sizes for cable diameters ranging from .064 (1.6 mm) to 1.732" (44.0 mm).
  • We recommend using the fitting with the smallest maximum diameter that will fit your application.
  • Acme threads on body prevent skipping and speed installation. PG hub threads are steel conduit threads per DIN 40430. For DIN 40430.
  • All nylon construction with TPE (Buna N sealing gland) resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
  • LabKit No. 78 (Part #3297) for prototype use is available.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
3444
RLTF 7 BLACKw/3165 NUT
Black  RLTF 7  0.064  1.6  0.21  Add to Quote

3207
LTF 7 BLACKw/3165 NUT
Black  LTF 7  0.114  2.9  0.25  Add to Quote

3446
RLTF 9 BLACKw/3167 NUT
Black  RLTF 9  0.069  1.8  0.187  Add to Quote

3210
LTF 9 BLACKw/3167 NUT
Black  LTF 9  0.181  4.6  0.312  Add to Quote

3448
RLTF 11 BLACKw/3169 NUT
Black  RLTF 11  0.069  1.8  0.25  Add to Quote

3213
LTF 11 BLACKw/3169 NUT
Black  LTF 11  0.23  5.8  0.395  Add to Quote

3216
LTF 13 BLACKw/3171 NUT
Black  LTF 13.5  0.17  4.3  0.45  Add to Quote

3219
LTF 16 BLACKw/3173 NUT
Black  LTF 16  0.23  5.8  0.53  Add to Quote

3454
RLTF 21 BLACK W/3175 NUT
Black  RLTF 21  0.25  6.4  0.49  Add to Quote

3222
LTF 21 BLACKw/3175 NUT
Black  LTF 21  0.45  11.4  0.705  Add to Quote

3225
LTF 29 BLACKw/3177 NUT
Black  LTF 29  0.59  15  0.99  Add to Quote

M3206
RLTCG PG-36 BLACKw/M9146 NUT
Black  RLTCGPG 36  0.787  20  1.02  Add to Quote

M3204
LTCG PG-36 BLACKw/M9146 NUT
Black  LTCGPG 36  0.875  22  1.26  Add to Quote

3218
3218
Black  RLTF 42  0.984  25  1.22  Add to Quote

3212
3212
Black  LTF 42  1.26  32  1.496  Add to Quote

3283
3283
Black  RLTF 48  1.142  29  1.378  Add to Quote

3281
3281
Black  LTF 48  1.457  37  1.732  Add to Quote

3445
RLTF 7 GRAYw/3166 NUT
Gray  RLTF 7  0.064  1.6  0.21  Add to Quote

3208
LTF 7 GRAYw/3166 NUT
Gray  LTF 7  0.114  2.9  0.25  Add to Quote

3447
RLTF 9 GRAYw/3168 NUT
Gray  RLTF 9  0.069  1.8  0.187  Add to Quote

Displaying 1 to 20 (of 30 products) Result Pages:  1  2  [Next >>]
