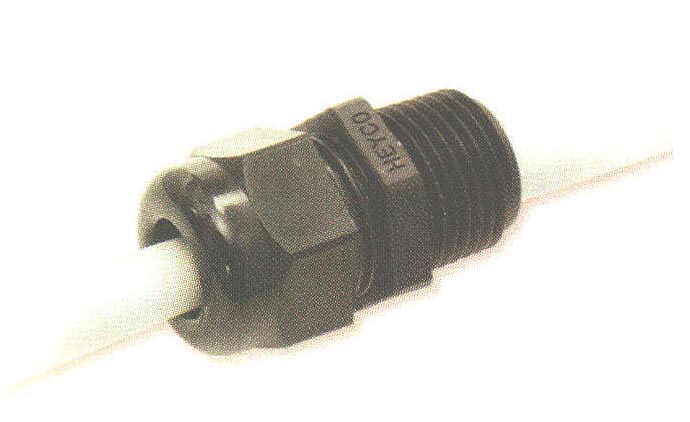

Liquid Tight Straight-Thru Cordgrips - US Patent No. 5405172

Click the product name or part number below to request a quote.

For Flexible Cords. NPT HUBS - For use in clearance or threaded holes. For a wider range of materials, cable sizes, and threads. Heyco TITE" Cordgrips
Foreign Patents
  • Twelve sizes for cable, tubing, etc. with diameters ranging from .065" (1.7 mm) to 1.260" (32.0 mm).
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with TPE or Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed for UL certification or testing.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are NOT included. To order nylon or steel locknuts separately.
  • LabKit No. 78 (Part #3297) for prototype use is available.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4514
RLTCG 1/4 NPT BLACK-NO NUT
Black  RLTCG 1/4  0.065  1.7  0.21  Add to Quote

M4516
LTCG 1/4 NPT BLACK-NO NUT
Black  LTCG 1/4  0.115  2.9  0.25  Add to Quote

3458
RLTF 3/8 NPT BLACK NO NUT
Black  RLTF 3/8  0.069  1.8  0.187  Add to Quote

3228
LTF 3/8 NPT BLACK NO NUT
Black  LTF 3/8  0.181  4.6  0.312  Add to Quote

3231
LTF 1/2 NPT BLACK NO NUT
Black  LTF 1/2  0.17  4.3  0.45  Add to Quote

3200
LLTF 1/2 NPT BLACK NO NUT
Black  LLTF 1/2  0.23  5.8  0.546  Add to Quote

3460
RLTF 3/4 NPT BLACK - NO NUT
Black  RLTF 3/4  0.25  6.4  0.485  Add to Quote

3234
LTF 3/4 NPT BLACK NO NUT
Black  LTF 3/4  0.45  11.4  0.709  Add to Quote

M8439
RLTCG 1 NPT BLACK-NO NUT
Black  RLTCG 1  0.472  12  0.787  Add to Quote

8437
LTF 1 NPT BLACK NO NUT
Black  LTF 1  0.59  15  Add to Quote

M4522
RLTCG 1-1/4 NPT BLACK-NO NUT
Black  RLTCG 1 1/4  0.787  20  1.02  Add to Quote

M4524
LTCG 1-1/4 NPT BLACK-NO NUT
Black  LTCG 1 1/4  0.875  22.3  1.26  Add to Quote

M4515
RLTCG 1/4 NPT GRAY-NO NUT
Gray  RLTCG 1/4  0.065  1.7  0.21  Add to Quote

M4517
LTCG 1/4 NPT GRAY-NO NUT
Gray  LTCG 1/4  0.115  2.9  0.25  Add to Quote

3459
RLTF 3/8 NPT GRAY NO NUT
Gray  RLTF 3/8  0.069  1.8  0.187  Add to Quote

3229
LTF 3/8 NPT GRAY NO NUT
Gray  LTF 3/8  0.181  4.6  0.312  Add to Quote

3232
LTF 1/2 NPT GRAY NO NUT
Gray  LTF 1/2  0.17  4.3  0.45  Add to Quote

3201
LLTF 1/2 NPT GRAY NO NUT
Gray  LLTF 1/2  0.23  5.8  0.546  Add to Quote

3461
RLTF 3/4 NPT GRAY - NO NUT
Gray  RLTF 3/4  0.25  6.4  0.485  Add to Quote

3235
LTF 3/4 NPT GRAY NO NUT
Gray  LTF 3/4  0.45  11.4  0.709  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
