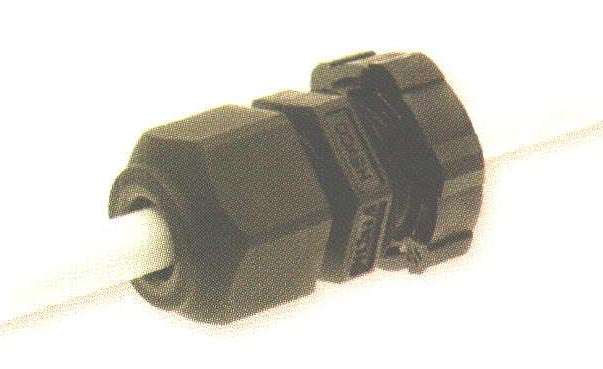

Heyco TITE" Liquid Tight Straight-Thru Cordgrips

Click the product name or part number below to request a quote.

For Flexible Cords. PG Hubs - Install in either clearance or threaded holes
US and Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to 1.260" (32.0 mm).
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°F (100°C).
  • Protection class IP 68 per DIN 40050.
  • Standard flammability rating 94V-2.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M3444
RLTCG PG-7 BLACKw/3165 NUT
Black  RLTCG 7  0.065  1.7  0.22  Add to Quote

M3207
LTCG PG-7 BLACKw/3165 NUT
Black  LTCG 7  0.115  2.9  0.25  Add to Quote

M3446
RLTCG PG-9 BLACKw/3167 NUT
Black  RLTCG 9  0.065  1.7  0.187  Add to Quote

M3210
LTCG PG-9 BLACKw/3167 NUT
Black  LTCG 9  0.105  2.7  0.312  Add to Quote

M3448
RLTCG PG-11 BLACKw/3169 NUT
Black  RLTCG 11  0.069  1.8  0.25  Add to Quote

M3213
LTCG PG-11 BLACKw/3169 NUT
Black  LTCG 11  0.23  5.8  0.395  Add to Quote

M4500
RLTCG PG-13 BLACKw/3171 NUT
Black  RLTCG 13.5  0.095  2.4  0.26  Add to Quote

M3216
LTCG PG-13 BLACKw/3171 NUT
Black  LTCG 13.5  0.17  4.3  0.45  Add to Quote

M4502
RLTCG PG-16 BLACKw/3173 NUT
Black  RLTCG 16  0.18  4.6  0.44  Add to Quote

M3219
LTCG PG-16 BLACKw/3173 NUT
Black  LTCG 16  0.26  5.8  0.546  Add to Quote

M3454
RLTCG PG-21 BLACKw/3175 NUT
Black  RLTCG 21  0.25  6.4  0.485  Add to Quote

M3222
LTCG PG-21 BLACKw/3175 NUT
Black  LTCG 21  0.485  12.3  0.709  Add to Quote

M4504
RLTCG PG-29 BLACKw/3177 NUT
Black  RLTCG 29  0.49  12.4  0.787  Add to Quote

M3225
LTCG PG-29 BLACKw/3177 NUT
Black  LTCG 29  0.59  15  Add to Quote

M3206
RLTCG PG-36 BLACKw/M9146 NUT
Black  RLTCG 36  0.787  20  1.02  Add to Quote

M3204
LTCG PG-36 BLACKw/M9146 NUT
Black  LTCG 36  0.865  22  1.26  Add to Quote

M3445
RLTCG PG-7 GRAYw/3166 NUT
Gray  RLTCG 7  0.065  1.7  0.22  Add to Quote

M3208
LTCG PG-7 GRAYw/3166 NUT
Gray  LTCG 7  0.115  2.9  0.25  Add to Quote

M3447
RLTCG PG-9 GRAYw/3168 NUT
Gray  RLTCG 9  0.065  1.7  0.187  Add to Quote

M3211
LTCG PG-9 GRAYw/3168 NUT
Gray  LTCG 9  0.105  2.7  0.312  Add to Quote

Displaying 1 to 20 (of 32 products) Result Pages:  1  2  [Next >>]
