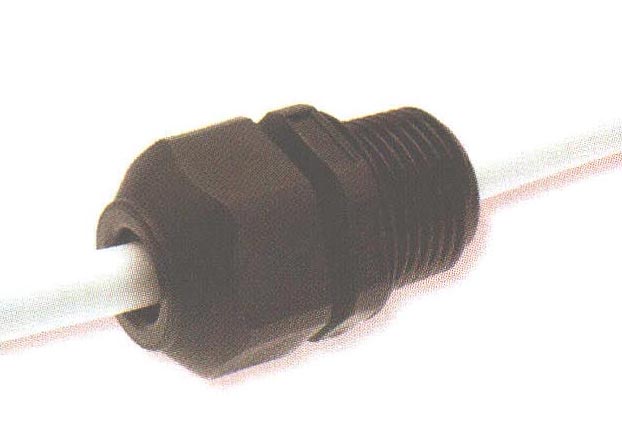

Heyco TITE" Liquid Tight Straight-Thru Cordgrips"

Click the product name or part number below to request a quote.

For Flexible Cords. NPT Hubs–For use in clearance or threaded holes
US and Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads and seven bodies for cables ranging from .065 (1.7 mm) to 1.260" (32.0 mm).
  • “Ratchet design” of sealing nut assembly provides superior antivibration protection and ensures a firm grip on the cable.
  • Integral “Sealing Ring” ensures a Superior seal at mounting location every time.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°;F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Locknuts are NOT included. To order nylon or steel locknuts separately,
  • Standard flammability rating 94V-2.
Filter:
  Product Name  Color  Description  Min. Dia. [inches]  Min. Dia. [mm]  Max. Dia. [inches]
M4514
RLTCG 1/4 NPT BLACK-NO NUT
Black  RLTCG 1/4  0.065  1.7  0.22  Add to Quote

M4516
LTCG 1/4 NPT BLACK-NO NUT
Black  LTCG 1/4  0.115  2.9  0.25  Add to Quote

M3458
RLTCG 3/8 NPT BLACK-NO NUT
Black  RLTCG 3/8  0.065  1.7  0.317  Add to Quote

M3228
LTCG 3/8 NPT BLACK-NO NUT
Black  LTCG 3/8  0.105  2.7  0.312  Add to Quote

M4518
RLTCG 1/2 NPT BLACK-NO NUT
Black  RLTCG 1/2  0.095  2.4  0.26  Add to Quote

M3231
LTCG 1/2 NPT BLACK-NO NUT
Black  LTCG 1/2  0.17  4.3  0.45  Add to Quote

M3460
RLTCG 3/4 NPT BLACK-NO NUT
Black  RLTCG 3/4  0.256  6.5  0.485  Add to Quote

M3234
LTCG 3/4 NPT BLACK-NO NUT
Black  LTCG 3/4  0.485  12.3  0.709  Add to Quote

M8439
RLTCG 1 NPT BLACK-NO NUT
Black  RLTCG 1  0.49  12.4  0.787  Add to Quote

M8437
LTCG 1 NPT BLACK-NO NUT
Black  LTCG 1  0.59  15  Add to Quote

M4522
RLTCG 1-1/4 NPT BLACK-NO NUT
Black  RLTCG 1 1/4  0.787  20  1.02  Add to Quote

M4524
LTCG 1-1/4 NPT BLACK-NO NUT
Black  LTCG 1 1/4  0.865  22  1.26  Add to Quote

M4515
RLTCG 1/4 NPT GRAY-NO NUT
Gray  RLTCG 1/4  0.065  1.7  0.22  Add to Quote

M4517
LTCG 1/4 NPT GRAY-NO NUT
Gray  LTCG 1/4  0.115  2.9  0.25  Add to Quote

M3459
RLTCG 3/8 NPT GRAY-NO NUT
Gray  RLTCG 3/8  0.065  1.7  0.23  Add to Quote

M3229
LTCG 3/8 NPT GRAY-NO NUT
Gray  LTCG 3/8  0.105  2.7  0.315  Add to Quote

M4519
RLTCG 1/2 NPT GRAY-NO NUT
Gray  RLTCG 1/2  0.095  2.4  0.26  Add to Quote

M3232
LTCG 1/2 NPT GRAY-NO NUT
Gray  LTCG 1/2  0.17  4.3  0.45  Add to Quote

M3461
RLTCG 3/4 NPT GRAY-NO NUT
Gray  RLTCG 3/4  0.256  6.5  0.485  Add to Quote

M3235
LTCG 3/4 NPT GRAY-NO NUT
Gray  LTCG 3/4  0.485  12.3  0.709  Add to Quote

Displaying 1 to 20 (of 24 products) Result Pages:  1  2  [Next >>]
