Metric Nut Retainers

Click the product name or part number below to request a quote.

Tinnerman® Nut Retainers combine the best advantages of spring steel fasteners with the high strength of a multi-threaded nut. They snap readily into bolt-receiving position at panel, edges or center-panel locations and retain themselves in place.
Filter:

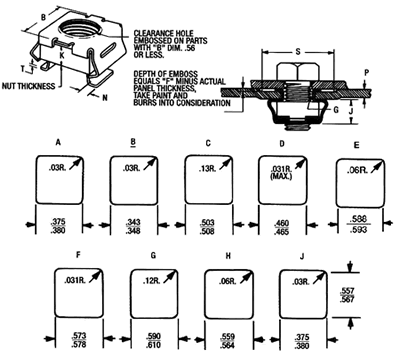

  Product Name  Screw Size  Panel Range (P)  Recc. Hole Diameter (F)  Emboss Sq. (min) (S)  Mount Hole (G)
Tinnerman® Nut Retainers
D7931-M407
Tinnerman® Nut Retainers
M4x.7  .635-1.60  2.54  13.487  A or B  Add to Quote

Tinnerman® Nut Retainers
D7941-M407
Tinnerman® Nut Retainers
M4x.7  1.626-2.667  3.556  13.487  A or B  Add to Quote

Tinnerman® Nut Retainers
D7941-M508
Tinnerman® Nut Retainers
M5x.8  1.626-2.667  3.556  13.487  A or B  Add to Quote

Tinnerman® Nut Retainers
D7988-M61
Tinnerman® Nut Retainers
M6x1  .635-1.60  2.54  13.487  A or B  Add to Quote

Tinnerman® Nut Retainers
D98580-M61
Tinnerman® Nut Retainers
M6x1  1.62-2.67  3.56  13.49  A or B  Add to Quote

Tinnerman® Nut Retainers
D7957-M8125
Tinnerman® Nut Retainers
M8x1.25  .2.362-320  4.445  18.644  C or D  Add to Quote

Tinnerman® Nut Retainers
D31910-M8125
Tinnerman® Nut Retainers
M8x1.25  4.496-5.004  6.223  18.644  C or D  Add to Quote

Tinnerman® Nut Retainers
D7935-M1015
Tinnerman® Nut Retainers
M10x1.5  3.226-4.115  5.207  18.644  C or D  Add to Quote

Displaying 1 to 8 (of 8 products) Result Pages:  1
