Palnut® Wing Type Lock Nuts

Click the product name or part number below to request a quote.

Tinnerman Palnut - Single-Thread Engaging Self-Locking Speed Nuts® provide a dual locking action- an inward thread lock combined with an arched spring lock- ensuring strong and reliable holding power. Made from heat-treated high carbon spring steel, these versatile fasteners:
  • Are engineered for easier handling and faster application.
  • Eliminate the need for lockwashers, spanner washers, or other loose pieces.
  • Are designed to resist loosening from vibration.
  • Will not freeze" to threads or clog with paint.
  • Provide maximum fastening power with minimal installation torque required.
Our Self-Locking Speed Nuts® are available in a wide range of standard and custom variations and work with all major screw types and sizes.
Filter:

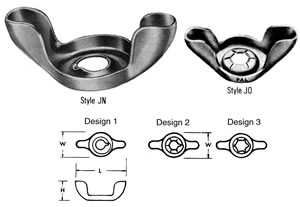

  Product Name  Thread Size  Wing Height (H)  Wing Length (L)  Width (W)  Notch Design
Palnut® Wing Type Lock Nuts
JO 632
Palnut® Wing Type Lock Nuts
6-32  0.344  3/4  0.344  Add to Quote

Palnut® Wing Type Lock Nuts
JO 832
Palnut® Wing Type Lock Nuts
8-32  0.359  13/16  0.4  Add to Quote

Palnut® Wing Type Lock Nuts
JN 1024
Palnut® Wing Type Lock Nuts
10-24  0.375  7/8  0.432  Add to Quote

Palnut® Wing Type Lock Nuts
JO 1024
Palnut® Wing Type Lock Nuts
10-24  0.375  7/8  0.432  Add to Quote

Palnut® Wing Type Lock Nuts
JO 1420
Palnut® Wing Type Lock Nuts
1/4-20  0.422  1-1/16  0.524  Add to Quote

Palnut® Wing Type Lock Nuts
JZ 001731
Palnut® Wing Type Lock Nuts
1/4-20  0.469  1.297  0.617  Add to Quote

Palnut® Wing Type Lock Nuts
JN 51618
Palnut® Wing Type Lock Nuts
5/16-18  0.469  1-1/4  0.617  Add to Quote

Displaying 1 to 7 (of 7 products) Result Pages:  1
